SELECT A DIAGRAM

01 - Cabinet Parts

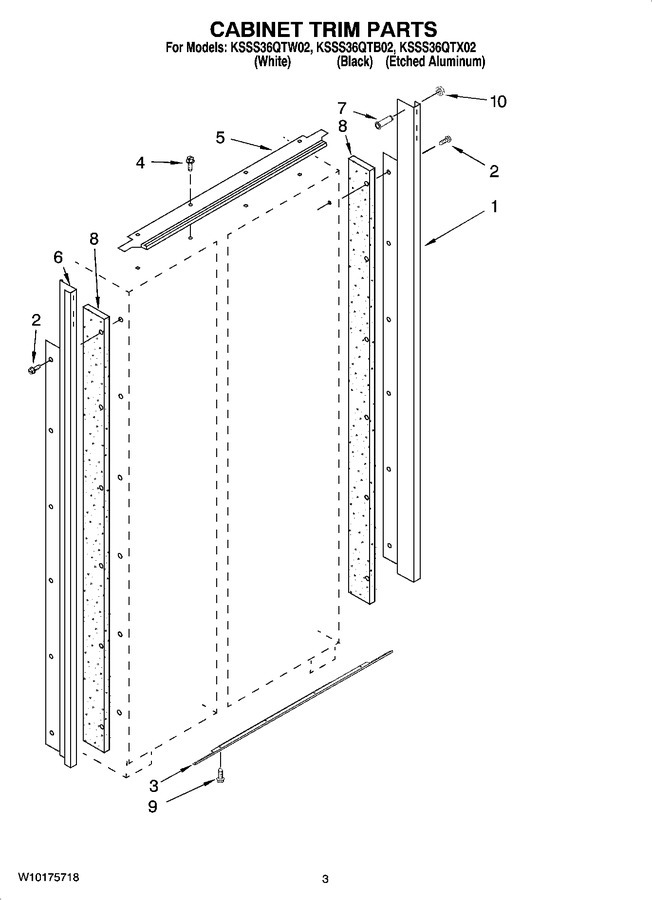

02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10132470		Cabinet, Trim (right Side) (white)		Appelez-nous	-
1	W10132471		Cabinet, Trim (right Side) (black)		Appelez-nous	-
1	W10132472		Cabinet, Trim (right Side) (stainless Steel)		Appelez-nous	-
2	WP1163283		Screw (stainless Steel)   (Replaces: 1163283)				$ 7.55
3	2316686		Cabinet, Trim (bottom)		Appelez-nous	-
4	W11624204		Screw   (Replaces: 486194)				$ 14.72
5	2314016B		Cabinet, Trim Top (black)		Appelez-nous	-
5	2314016		Cabinet, Trim Top (brushed Aluminum)		Appelez-nous	-
5	2314016W		Cabinet, Trim Top (white)		Appelez-nous	-
6	W10132540		Cabinet Trim (left Side) (black)		Appelez-nous	-
6	W10132541		Cabinet Trim (left Side) (stainless Steel)		Appelez-nous	-
6	W10132537		Cabinet Trim (left Side) (white)		Appelez-nous	-
7	WPW10121451		Nut Cert (4)   (Replaces: W10121451)			Immediately	$ 8.03
8	2005925		Seal, Side Trim				$ 83.72
9	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
10	2207415		Nut, Hex (4)				$ 14.04

    View Diagram in Separate Window       Print Part List
