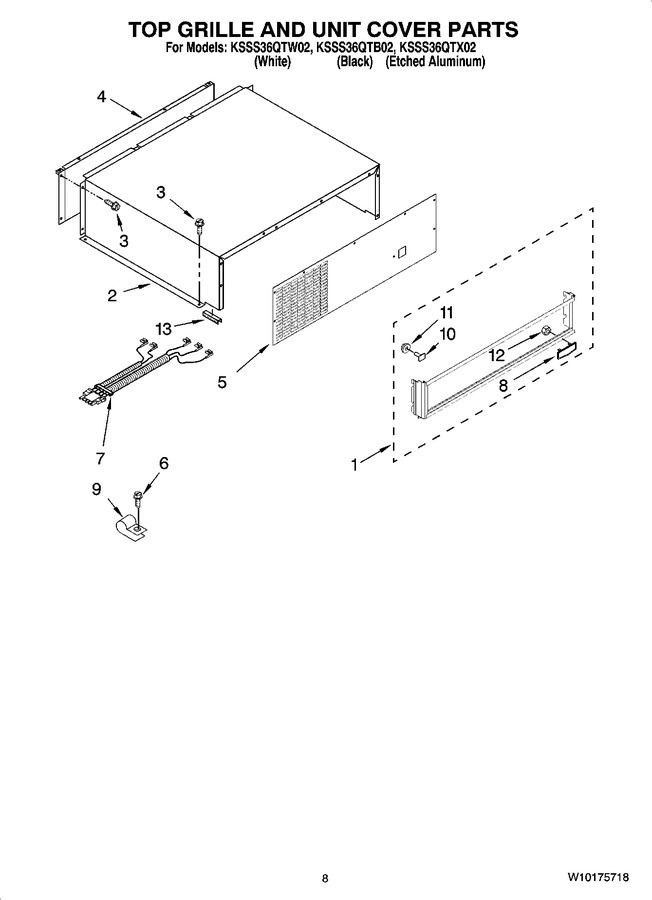

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316824B		Top Grille Assy (black)		Appelez-nous	-
1	2316824S		Top Grille Assy (stainless Steel)		Appelez-nous	-
1	2316824W		Top Grille Assy (white)		Appelez-nous	-
2	W10161693		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 14.72
4	2256466		Back Panel				$ 327.22
5	W10121229		Cover, Unit Front		Appelez-nous	-
6	WP965173		Screw   (Replaces: 487415)			Immediately	$ 11.87
7	2310194		Wire Assembly, Rc/fc Light Switch				$ 69.47
8	2317923S		Badge, Kitchen Aid (stainless Steel)		Appelez-nous	-
8	2317923B		Badge, Kitchen Aid (black)		Appelez-nous	-
8	2317923W		Badge, Kitchen Aid (white)		Appelez-nous	-
9	489348		Clamp		Appelez-nous	-
10	2003347		Tee Bolt (4)				$ 14.99
11	WP488130		Nut (4)   (Replaces: 1161548)				$ 7.32
12	WP2004333		Nut (2)   (Replaces: 2004333)				$ 11.24
13	2215910		Grommet				$ 94.32
