SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts

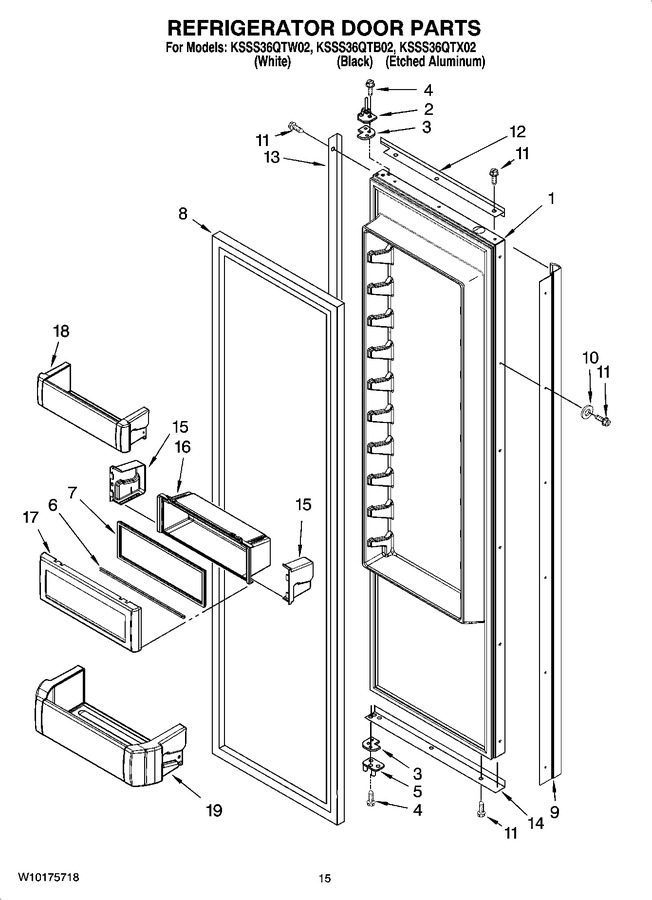

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252329		Refrigerator Door (includes 8)		Appelez-nous	-
2	W11724512		Hinge Assembly, Top   (Replaces: 2266854)				$ 297.62
3	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
5	2302878		Hinge Assembly, Bottom			Immediately	$ 86.68
6	2222795		Rail, Lid				$ 80.10
7	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 204.19
8	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 352.23
9	2316842S		Handle, Door (stainless Steel)				$ 224.10
9	2316842B		Handle, Door (black)		Appelez-nous	-
9	2316842W		Handle, Door (white)		Appelez-nous	-
10	2001230		Washer				$ 12.34
11	W10825422		Screw, 8-15 X .500   (Replaces: 8281251)				$ 10.82
12	2005839		Trim, Door (top) (black)		Appelez-nous	-
12	2005013		Trim, Door (top) (white)		Appelez-nous	-
12	2005016		Trim-door, Top (brushed Aluminum)		Appelez-nous	-
13	2005971		Trim-door, Side (black)		Appelez-nous	-
13	2005968		Trim-door, Side (white)		Appelez-nous	-
13	2005969		Trim-door, Side (brushed Aluminum)		Appelez-nous	-
14	2215993B		Trim-door, Bottom (black)		Appelez-nous	-
14	2215993W		Trim-door, Bottom (white)		Appelez-nous	-
14	2215993S		Trim-door, Bottom (stainless Steel)		Appelez-nous	-
15	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 8.19
15	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 8.19
16	WPW10323035		Bin, Utility Center   (Replaces: 2222921)				$ 80.89
17	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 72.20
18	W10323598		Bin, Door (3)   (Replaces: 2222772)				$ 99.80
19	W10323746		Bin, Door   (Replaces: 2222769)				$ 103.09
