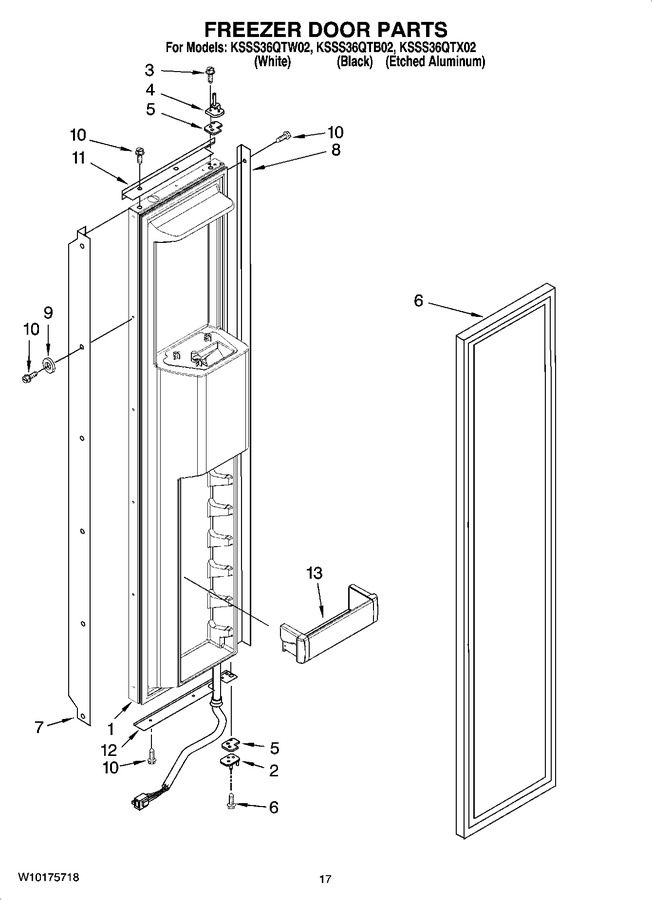

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10160319		Freezer Door (includes 13) (black)		Appelez-nous	-
1	W10157901		Freezer Door (includes 13) (universal Silver)		Appelez-nous	-
1	W10160320		Freezer Door (includes 13) (white)		Appelez-nous	-
2	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 63.07
3	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
4	W11724512		Hinge, Top   (Replaces: 2266854)				$ 312.50
5	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 108.07
6	W11624976		Door Gasket, Magnetic   (Replaces: 2222813)			Immediately	$ 316.47
7	2316844W		Handle, Door (white)		Appelez-nous	-
7	2316844S		Handle, Door (stainless Steel)				$ 225.63
7	2316844B		Handle, Door (black)		Appelez-nous	-
8	2005963		Trim-door, Side (white)		Appelez-nous	-
8	2005964		Trim-door, Side (brushed Aluminum)		Appelez-nous	-
8	2005966		Trim-door, Side (black)		Appelez-nous	-
9	2001230		Washer				$ 12.34
10	W10825422		Screw   (Replaces: 8281251)				$ 11.36
11	2005022		Trim, Door (top) (white)		Appelez-nous	-
11	2005025		Trim-door, Top (brused Aluminum)		Appelez-nous	-
11	2005885		Trim, Door (top) (black)		Appelez-nous	-
12	2215984S		Trim-door, Bottom (stainless Steel)		Appelez-nous	-
12	2215984B		Trim-door, Bottom (black)		Appelez-nous	-
12	2215984W		Trim-door, Bottom (white)		Appelez-nous	-
13	W10323601		Bin, Door (3)   (Replaces: 2222775)				$ 92.19
