SELECT A DIAGRAM

02 - Cabinet


03 - Cabinet Trims And Breaker Trim


04 - Top Grille And Unit Cover


05 - Refrigerator Liner


06 - Freezer Liner


07 - Ice Container


08 - Refrigerator Control Panel


09 - Freezer Control Panel


10 - Refrigerator Shelf


11 - Freezer Shelf


12 - Refrigerator Door


13 - Freezer Door


14 - Dispenser And Front


15 - Upper Unit


16 - Lower Unit And Tube


17 - Air Flow And Reservoir


18 - Icemaker, Lit/optional

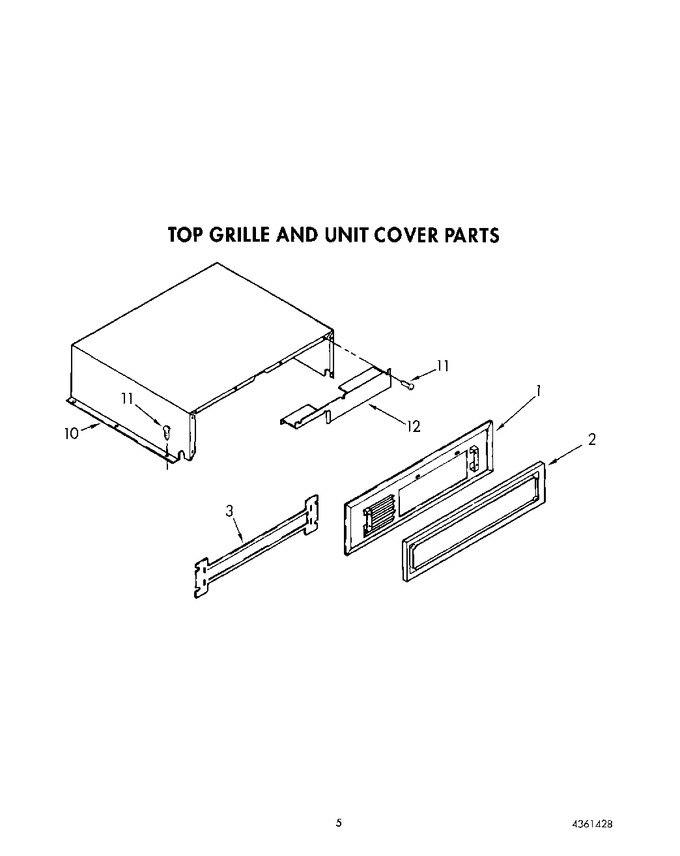

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000845		Top Grille Assembly		Appelez-nous	-
2	2001054		Decorative Panel Assembly		Appelez-nous	-
3	1113355		Back Up Panel		Appelez-nous	-
10	2001088		Cover, Unit		Appelez-nous	-
11	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
12	1113300		Cover, Component Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
