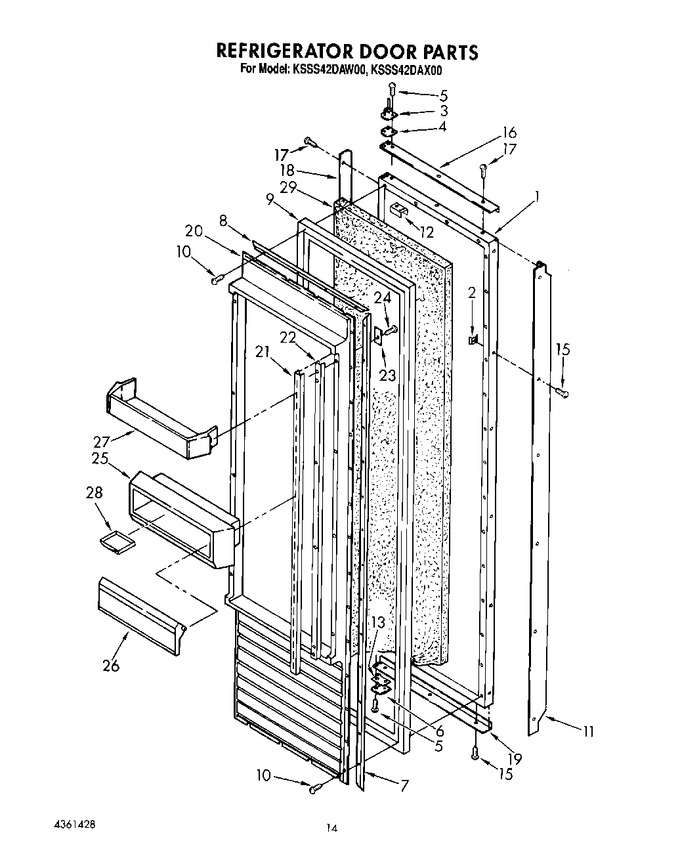

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2000031 | Door Panel, Refrigerator (also Order Item 29) |
|
- | |||||
| 2 | WP939101 | Screw Anchor (8) (Replaces: 939101) |
|
$ 7.88 | |||||
| 3 | 2000696 | Hinge Assembly, Top |
|
- | |||||
| 4 | 2000303 | Spacer, Top |
|
- | |||||
| 5 | W11474472 | Screw (Replaces: 489282) |
|
Immediately | $ 8.63 | ||||
| 6 | 2000698 | Hinge Assembly, Bottom |
|
- | |||||
| 7 | 1112533 | Gasket Retainer, Side (2) |
|
- | |||||
| 8 | 1112541 | Gasket Retainer, Top & Bottom |
|
- | |||||
| 9 | 2188320A | Door Gasket, Magnetic (Replaces: 2000880) |
|
$ 311.22 | |||||
| 10 | WP489069 | Screw, 7 X 1/2 (36) (Replaces: 489101) |
|
Immediately | $ 8.40 | ||||
| 11 | 2000323 | Handle, Door |
|
- | |||||
| 12 | 2000349 | Tap, Plate |
|
- | |||||
| 13 | 2000697 | Spacer, Bottom |
|
- | |||||
| 15 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 487052) |
|
Immediately | $ 8.28 | ||||
| 16 | 2000316 | Trim (top) |
|
- | |||||
| 17 | 489112 | Screw, 6-32 X 1/2 |
|
- | |||||
| 18 | 2000314 | Trim (side) |
|
- | |||||
| 19 | 2000319 | Trim (bottom) |
|
- | |||||
| 20 | 1113953 | Panel, Interior Door |
|
- | |||||
| 21 | 1113951 | Ladder, Shelf (2) |
|
- | |||||
| 22 | 1112530 | Retainer, Shelf Ladder (2) |
|
- | |||||
| 23 | 1112514 | Back Up Plate (8) |
|
- | |||||
| 24 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 25 | 1112721 | Bin, Utility |
|
- | |||||
| 26 | 1112736 | Door, Utility Bin |
|
- | |||||
| 27 | 2000912 | Door Shelf (4) |
|
- | |||||
| 28 | 1125936 | Butter, Tray |
|
- | |||||
| 29 | 876029 | Kit, Foam Slab (required When Replacing Exterior Door Panel) |
|
- |
