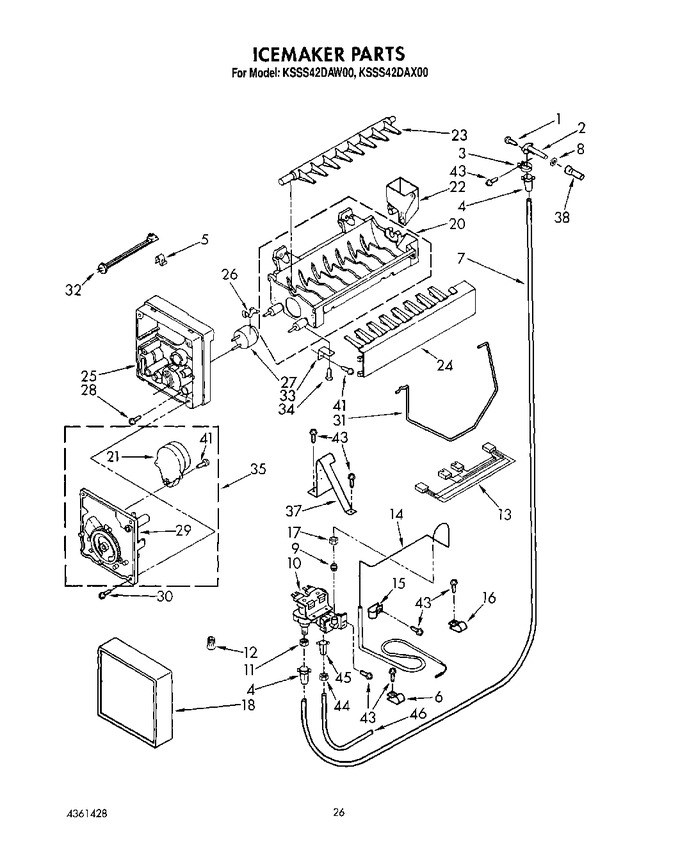

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
2	2000829		Fitting, Water Tube		Appelez-nous	-
3	WP488878		Clamp, Tube   (Replaces: 2001087)				$ 11.60
4	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
5	WP628379		Clip, Fuse   (Replaces: 628379)				$ 10.57
6	2000392		Wire Clip		Appelez-nous	-
7	2001336		Tube, Water (to Ice Maker)		Appelez-nous	-
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
9	WP487627		Sleeve, Nut   (Replaces: 487627)				$ 11.17
10	W10853654		Valve, Solenoid   (Replaces: 2155062)				$ 157.68
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
12	227991		Connector Wire		Appelez-nous	-
13	2000836		Water Valve, Harness		Appelez-nous	-
14	2001354		Copper, Water Line		Appelez-nous	-
15	489348		Clamp, Nylon Valve		Appelez-nous	-
16	1113066		Clamp Tube		Appelez-nous	-
17	WP245183		Nut   (Replaces: 487857)				$ 7.79
18	628355		Cover		Appelez-nous	-
20	WPW10190929		Mold & Heater (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 233.15
21	W10190935		Motor   (Replaces: 628258)			Immediately	$ 110.07
22	WP628356		Cup-water Fill   (Replaces: 628356)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 86.05
25	WP2195914		Support   (Replaces: 627790)				$ 104.57
26	WP2315522		Retainer, Thermostat (2)   (Replaces: 627796)				$ 11.05
27	WP627985		Thermostat (also Order 542639 Cement Alumilastic)   (Replaces: 627985)				$ 109.18
28	8533917		Screw, 10-32 X 49/64   (Replaces: 489322)				$ 13.37
29	00628357		Module, Assembly   (Replaces: 628357)			Immediately	$ 83.68
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	W11807379		Shut Off Arm   (Replaces: 627913)			Immediately	$ 60.20
32	1113403		Harness, Wiring		Appelez-nous	-
33	WP2256087		Bracket   (Replaces: 627915)				$ 93.00
34	489365		Screw, 8-32 X 27/64		Appelez-nous	-
35	W10190935		Module Assembly (includes Items 21, 29, 41)   (Replaces: 628366)			Immediately	$ 110.07
37	2000803		Water Valve Mounting Bracket		Appelez-nous	-
38	2001098		Water Inlet Tube		Appelez-nous	-
41	489136		Screw, (2) 3-24 X 3/8				$ 10.29
43	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
44	1129179		Compression Nut		Appelez-nous	-
45	1129177		Insert, Tube				$ 5.27
46	2001151		Water, Tube (from Water Reservior)		Appelez-nous	-
100	4317943		Complete Icemaker Assembly			Immediately	$ 188.95
100	4210593		Stainless Steel		Appelez-nous	-
100	4211168		Front Panel Kit (almond)		Appelez-nous	-
100	4210469		Front Panel Kit (black)		Appelez-nous	-
100	4210464		Front Panel Kit (white)		Appelez-nous	-
100	4210546		Top Grille Trim Kit (7-1/2``)		Appelez-nous	-
100	4210545		Top Grille Trim Kit (8``)		Appelez-nous	-
100	978849		Cleaner				$ 15.82
	LIT2000850		Service & Wiring Sheet		Appelez-nous	-
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2000870		Energy Label		Appelez-nous	-
	LIT2001362		Use & Care Guide		Appelez-nous	-
	LIT4361428		Parts List		Appelez-nous	-
	LIT2001094		Installation Instructions		Appelez-nous	-
