Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2001127 Assembly, Unit Base Appelez-nous -
2 1113386 Assembly, Sound Barrier Appelez-nous -
3 4318070 Compressor (includes Items 8, 9, 10, 11, 13) (also Order 876765 Tube Kit) Appelez-nous -
4 1105220 Bracket, Mounting Appelez-nous -
5 1105219 Grommet, Compressor Bracket Appelez-nous -
6 1105200 Grommet, Mounting Appelez-nous -
7 489334 Screw Appelez-nous -
8 2154947 Overload Appelez-nous -
9 2154452 Terminal Cover Appelez-nous -
10 1105222 Strap, Cover Appelez-nous -
11 1118797 Relay Appelez-nous -
12 2149684 Running Capacitor Appelez-nous -
13 2154949 Starting Capacitor Appelez-nous -
14 1108033 Clamp Appelez-nous -
15 WP965173 Screw, 8 X 3/8   (Replaces: 487869) In-Stock Immediately $ 11.87

16 1113015 Condenser Appelez-nous -
17 943447 Grommet (4) Appelez-nous -
18 1113019 Clamp (4) Appelez-nous -
19 487522 Screw, 8-32 X 5/8 (4) Appelez-nous -
20 1113228 Wire Tie (2) Appelez-nous -
21 1108023 Drier Appelez-nous -
22 2000358 Mounting Bracket, Motor Appelez-nous -
23 1113081 Motor, Fan Appelez-nous -
24 2000352 Blade, Fan Appelez-nous -
25 2000351 Orifice, Fan Appelez-nous -
26 1113303 Gasket, Orifice Appelez-nous -
27 WP488130 Nut (3)   (Replaces: 488130) Special Order $ 7.32

28 489368 Screw, 8 X 1/2 (3) Appelez-nous -
29 WP486692 Speed Nut   (Replaces: 486692) Special Order $ 8.43

30 WP2183400 Defrost Timer   (Replaces: 2162044) In-Stock Immediately $ 86.97

31 WP3388228 Screw, 6-20 X 3/8   (Replaces: 488911) Special Order $ 7.30

32 2000645 Sleeve, Condenser Appelez-nous -
33 1113066 Clamp, Tube (2) Appelez-nous -
34 1113059 Process, Tube Appelez-nous -
35 W11624204 Screw, 8 X 1/2   (Replaces: 486194) Special Order $ 14.72

36 2000853 Cover, Fan Appelez-nous -
37 1113028 Cover, Condenser Appelez-nous -
38 1113076 Extension, Housing Appelez-nous -
39 937360 Cord, Service Appelez-nous -
40 2001503 Seal Strip (2) Appelez-nous -
41 1113162 Clamp, Cord (2) Appelez-nous -
42 WP2266802 Switch, Power Disconnect   (Replaces: 1113229) Special Order $ 109.08

43 303776 Screw, Ground   (Replaces: 488879) Appelez-nous -
44 653035 Clip, Cord Plug Appelez-nous -
45 2001078 Wiring Harness, Unit Compartment Appelez-nous -
47 876764 Valve, Access(3/16``) In-Stock Immediately $ 95.92

47 SF5538 Valve, Access (3/8``)   (Replaces: 978027) Special Order $ 21.64

47 978028 Valve, Access (1/2) Appelez-nous -
47 978029 Valve Access (5/8``) Special Order $ 93.85

47 978030 Valve, Access (3/4``) Special Order $ 137.25

47 WP978025 Valve, Access (1/4``)   (Replaces: 978025) In-Stock Immediately $ 110.51

47 2001079 Gasket (2) Appelez-nous -
47 978026 Valve, Access (5/16``) In-Stock Immediately $ 134.49


    View Diagram in Separate Window     Print Icon   Print Part List

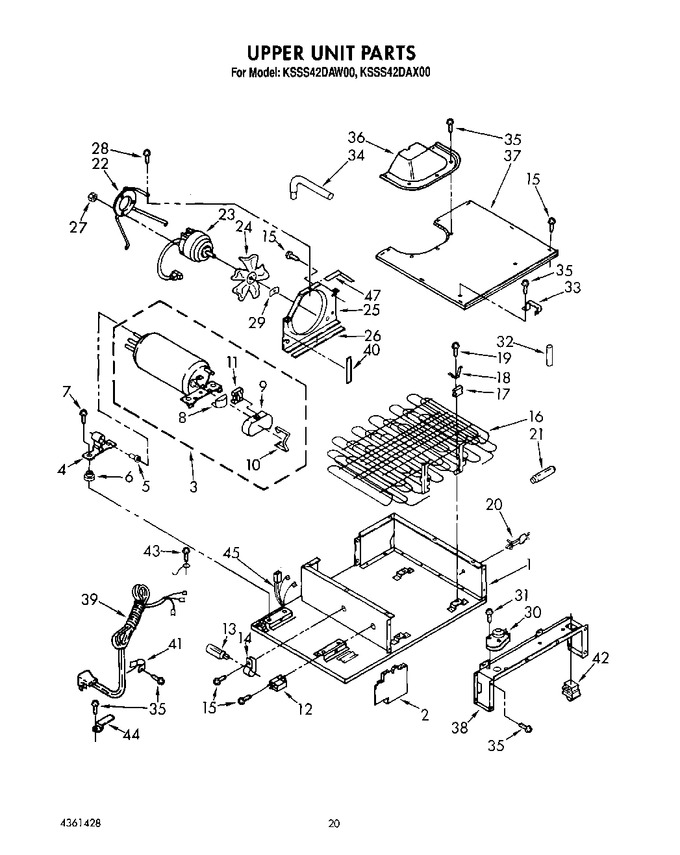

Diagram for KSSS42DAW00
