SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker


03 - Refrigerator Liner


04 - Freezer Liner


05 - Ice Container


06 - Refrigerator Shelf


07 - Freezer Shelf


08 - Refrigerator Door


09 - Refrigerator Control Panel


10 - Freezer Door


11 - Freezer Control Panel


12 - Dispenser And Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Air Flow And Reservoir


16 - Icemaker, Lit/optional


17 - Top Grille And Unit Cover

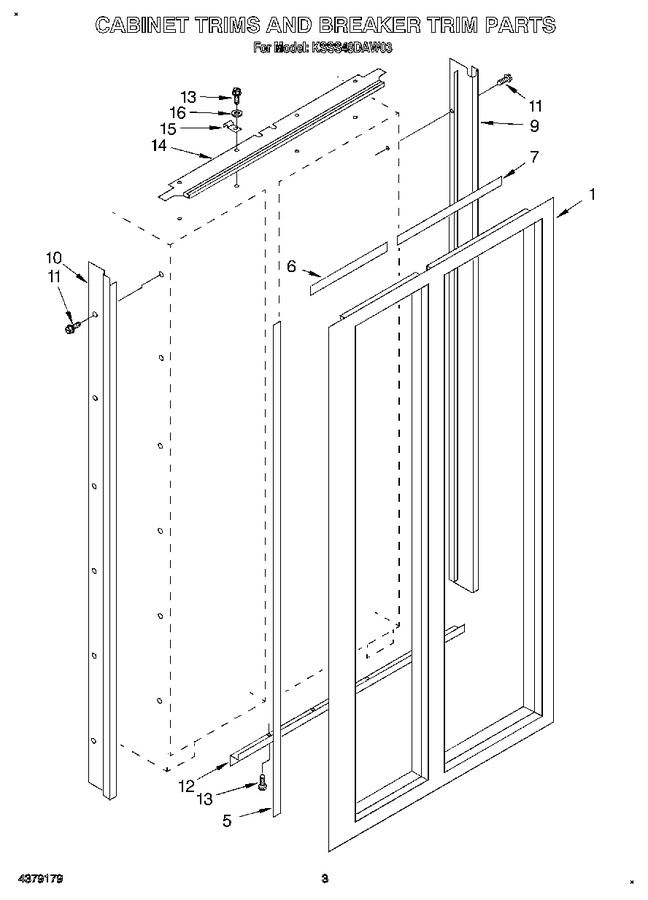

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000652		Breaker Trim & Retainer Assembly		Appelez-nous	-
5	1112682		Magnet, Side (4)		Appelez-nous	-
6	1112679		Magnet, Freezer (2)		Appelez-nous	-
7	1112681		Magnet, Refrigerator (2)		Appelez-nous	-
9	2001390		Cabinet, Trim R.s		Appelez-nous	-
10	2001391		Cabinet, Trim L.s		Appelez-nous	-
11	2001297		Screw		Appelez-nous	-
12	2001190		Cabinet, Trim (bottom)		Appelez-nous	-
13	WPW10141625		Screw, 8-32 X 1/2 (8)   (Replaces: 488649)				$ 22.22
14	2001389		Cabinet, Trim Top		Appelez-nous	-
15	2000007		Retainer, Unit Base (2)		Appelez-nous	-
16	487944		Washer (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
