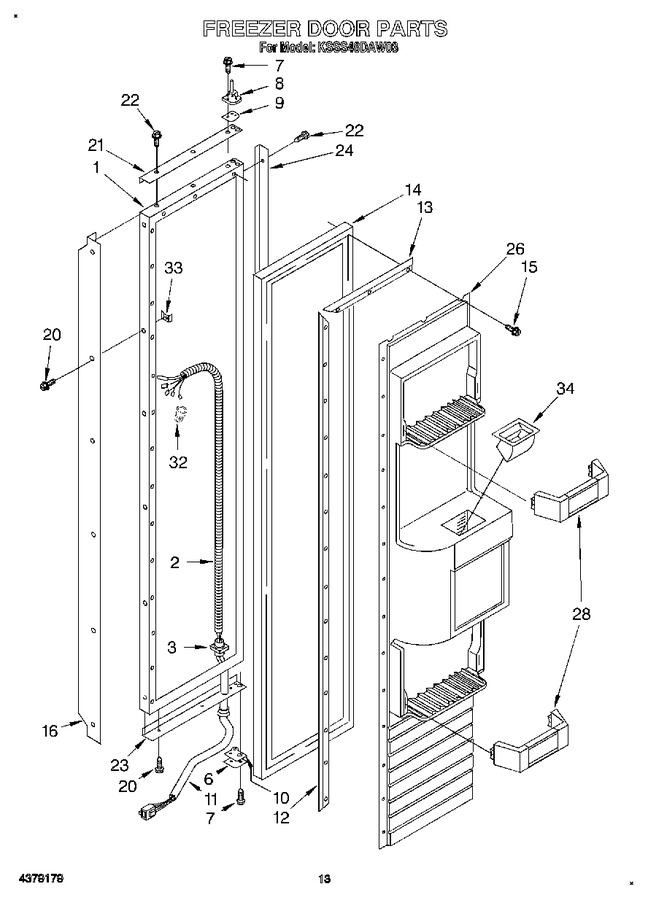

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2001138		Exterior Door Panel, Freezer (includes Insulation)		Appelez-nous	-
2	1112997		Tube, Wiring		Appelez-nous	-
3	1112928		Retainer, Tube		Appelez-nous	-
6	2000720		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
8	2000721		Hinge, Top		Appelez-nous	-
9	2001396		Spacer Plate		Appelez-nous	-
10	2001395		Door, Spacer Bottom		Appelez-nous	-
11	2001323		Wiring Harness, Freezer Door		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188319A		Door Gasket, Magnetic   (Replaces: 2000878)			Immediately	$ 316.41
15	WP489069		Screw, 7 X 1/2 (34)   (Replaces: 489101)			Immediately	$ 7.86
16	2000389		Handle, Door		Appelez-nous	-
20	2001208		Screw		Appelez-nous	-
21	2001408		Trim (top)		Appelez-nous	-
22	2001209		Screw		Appelez-nous	-
23	2001411		Trim (bottom)		Appelez-nous	-
24	2000390		Trim (side)		Appelez-nous	-
26	1113947		Panel, Interior Door		Appelez-nous	-
28	2000606		Door Shelf, Assembly		Appelez-nous	-
32	227991		Wire Connector		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
34	2000798		Ice Chute		Appelez-nous	-
