SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trims And Breaker


03 - Refrigerator Liner


04 - Freezer Liner


05 - Ice Container


06 - Refrigerator Shelf


07 - Freezer Shelf


08 - Refrigerator Door


09 - Refrigerator Control Panel


10 - Freezer Door


11 - Freezer Control Panel


12 - Dispenser And Front


13 - Upper Unit


14 - Lower Unit And Tube


15 - Air Flow And Reservoir


16 - Icemaker, Lit/optional


17 - Top Grille And Unit Cover

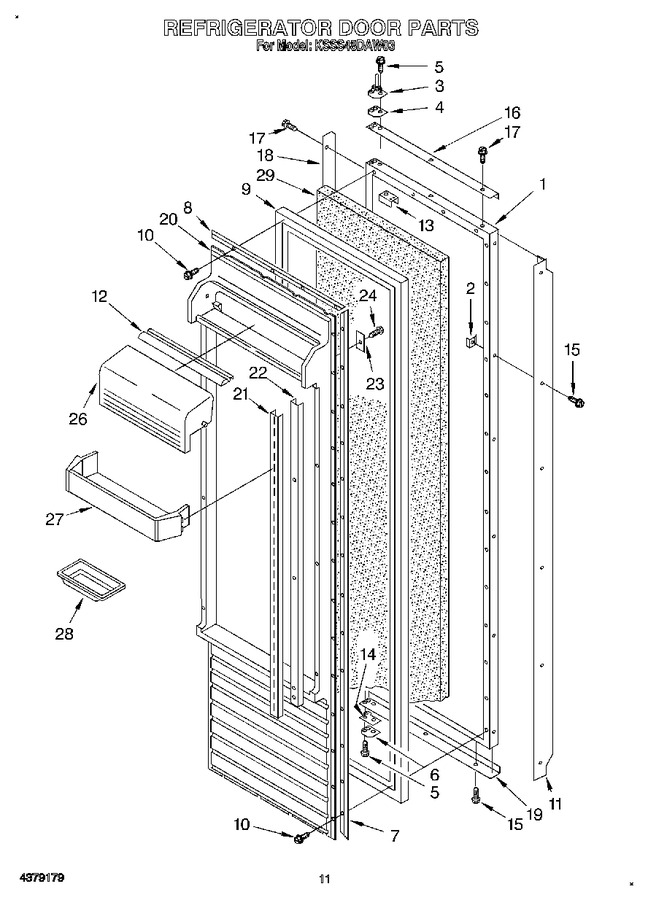

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000695		Door Panel, Refrigerator (also Order Item 29)		Appelez-nous	-
2	WP939101		Screw Anchor (8)   (Replaces: 939101)				$ 7.50
3	2000696		Hinge Assembly, Top		Appelez-nous	-
4	2001396		Spacer		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.02
6	2000698		Hinge Assembly, Bottom		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112542		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188321A		Door Gasket, Magnetic   (Replaces: 2001049)				$ 340.46
10	WP489069		Screw, 7 X 1/2 (36)   (Replaces: 489101)			Immediately	$ 7.86
11	2000388		Handle, Door		Appelez-nous	-
12	1113955		Gasket Utility Door		Appelez-nous	-
13	2000349		Tap, Plate		Appelez-nous	-
14	2001395		Door, Spacer Bottom		Appelez-nous	-
15	2001208		Screw		Appelez-nous	-
16	2001399		Trim (top)		Appelez-nous	-
17	2001209		Screw		Appelez-nous	-
18	2000391		Trim (side)		Appelez-nous	-
19	2001403		Trim (bottom)		Appelez-nous	-
20	1113950		Panel, Interior Door		Appelez-nous	-
21	1113949		Ladder, Shelf (2)		Appelez-nous	-
22	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
26	1112737		Door, Utility Bin		Appelez-nous	-
27	2000622		Door Shelf (4)		Appelez-nous	-
28	1125936		Butter, Tray		Appelez-nous	-
29	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
