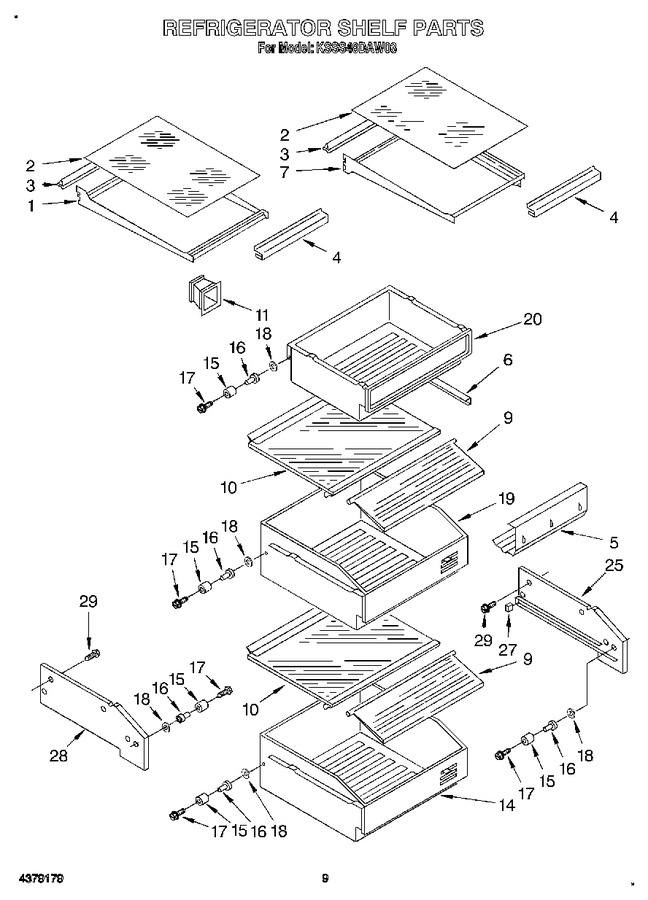

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1112004		Frame, Shelf		Appelez-nous	-
2	1113956		Glass, Shelf		Appelez-nous	-
3	1112006		Reflector, Shelf		Appelez-nous	-
4	1113792		Gasket, Glass (2)		Appelez-nous	-
5	1125913		Rack, Wine		Appelez-nous	-
6	1112324		Retainer, Glass		Appelez-nous	-
7	1112014		Frame Assembly		Appelez-nous	-
9	WP1112247		Cover, Crisper   (Replaces: 1112247)				$ 103.94
10	1113238		Glass, Crisper		Appelez-nous	-
11	2000742		Meat Pan, Connector		Appelez-nous	-
14	2000554		Pan, Crisper		Appelez-nous	-
15	1113870		Roller		Appelez-nous	-
16	1113871		Eyelet, Roller		Appelez-nous	-
17	WPW10272364		Screw, 10-16 X 3/4   (Replaces: 489211)			Immediately	$ 11.36
18	488307		Washer		Appelez-nous	-
19	2000557		Utility Pan		Appelez-nous	-
20	2000817		Meat Pan		Appelez-nous	-
25	1112165		Crisper Spacer, Right Side (2)		Appelez-nous	-
27	1113169		Stop, Roller				$ 11.28
28	1113890		Crisper Spacer, Left Side (2)		Appelez-nous	-
29	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72

    View Diagram in Separate Window       Print Part List
