Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000571		Door Panel, Refrigerator (also Order Item 29)		Appelez-nous	-
2	WP939101		Screw Anchor (8)   (Replaces: 939101)				$ 7.88
3	1112945		Hinge Assembly, Top		Appelez-nous	-
4	1112940		Spacer		Appelez-nous	-
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
6	1112921		Hinge Assembly, Bottom		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112542		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2000447		Door Gasket, Magnetic		Appelez-nous	-
10	WP489069		Screw, 7 X 1/2 (36)   (Replaces: 489101)			Immediately	$ 8.40
11	2000182		Handle, Door		Appelez-nous	-
12	1113955		Gasket Utility Door		Appelez-nous	-
15	WP488729		Screw, 8-15 X 1/2   (Replaces: 487052)			Immediately	$ 8.28
16	2000083		Trim (top)		Appelez-nous	-
17	489112		Screw, 6-32 X 1/2		Appelez-nous	-
18	1113820		Trim (side)		Appelez-nous	-
19	2000089		Trim (bottom)		Appelez-nous	-
20	1113950		Panel, Interior Door		Appelez-nous	-
21	1113949		Ladder, Shelf (2)		Appelez-nous	-
22	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
26	1112737		Door, Utility Bin		Appelez-nous	-
27	2000622		Door Shelf (4)		Appelez-nous	-
28	1125936		Butter, Tray		Appelez-nous	-
29	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-

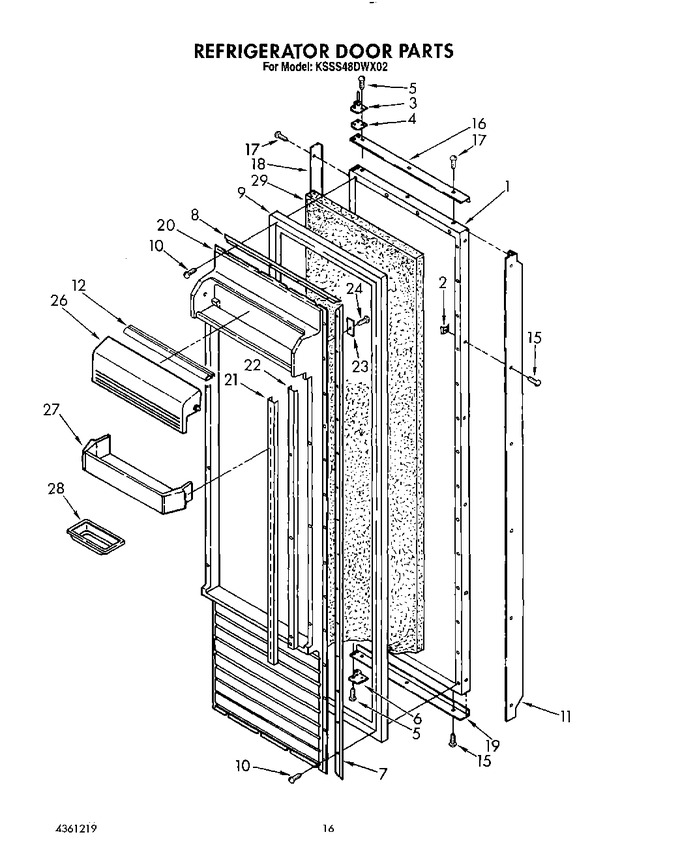

    View Diagram in Separate Window       Print Part List
