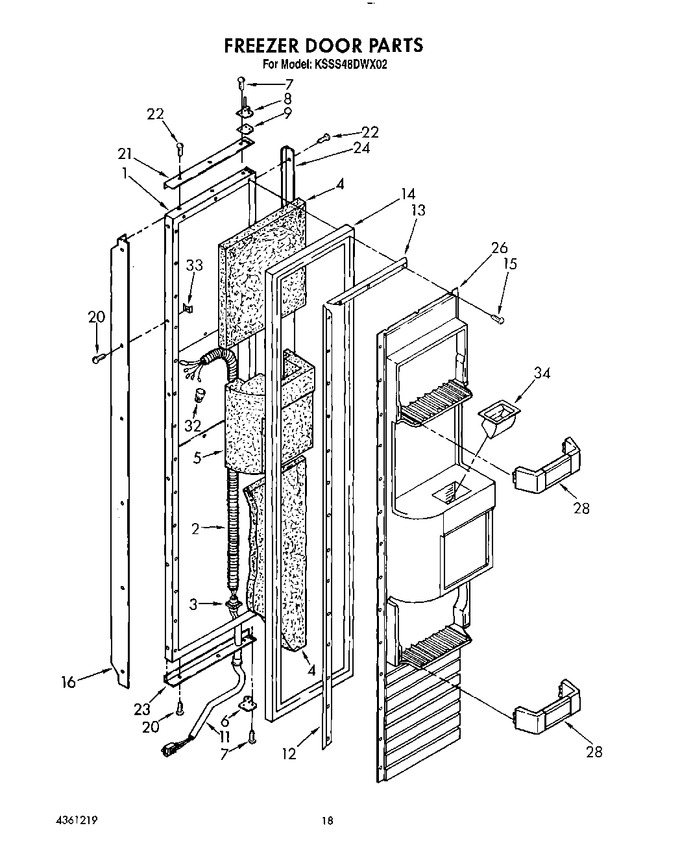

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2000594		Exterior Door Panel, Freezer (also Order Item 4)		Appelez-nous	-
2	1112997		Tube, Wiring		Appelez-nous	-
3	1112928		Retainer, Tube		Appelez-nous	-
4	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
5	1112979		Insulation, Dispenser		Appelez-nous	-
6	1112916		Hinge, Bottom		Appelez-nous	-
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 8.63
8	1112944		Hinge, Top		Appelez-nous	-
9	1112940		Spacer Plate Expansion (2)		Appelez-nous	-
11	1112488		Wiring Harness, Freezer Door		Appelez-nous	-
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112539		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2000444		Door Gasket, Magnetic		Appelez-nous	-
15	WP489069		Screw, 7 X 1/2 (34)   (Replaces: 489101)			Immediately	$ 8.40
16	2000182		Handle, Door		Appelez-nous	-
20	WP488729		Screw, 8-15 X 1/2   (Replaces: 487052)			Immediately	$ 8.28
21	2000079		Trim (top)		Appelez-nous	-
22	489112		Screw, 6-32 X 1/2		Appelez-nous	-
23	2000086		Trim (bottom)		Appelez-nous	-
24	1113820		Trim (side)		Appelez-nous	-
26	1113947		Panel, Interior Door		Appelez-nous	-
28	2000606		Door Shelf, Assembly		Appelez-nous	-
32	227991		Wire Connector		Appelez-nous	-
33	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
34	1112554		Ice Chute		Appelez-nous	-
