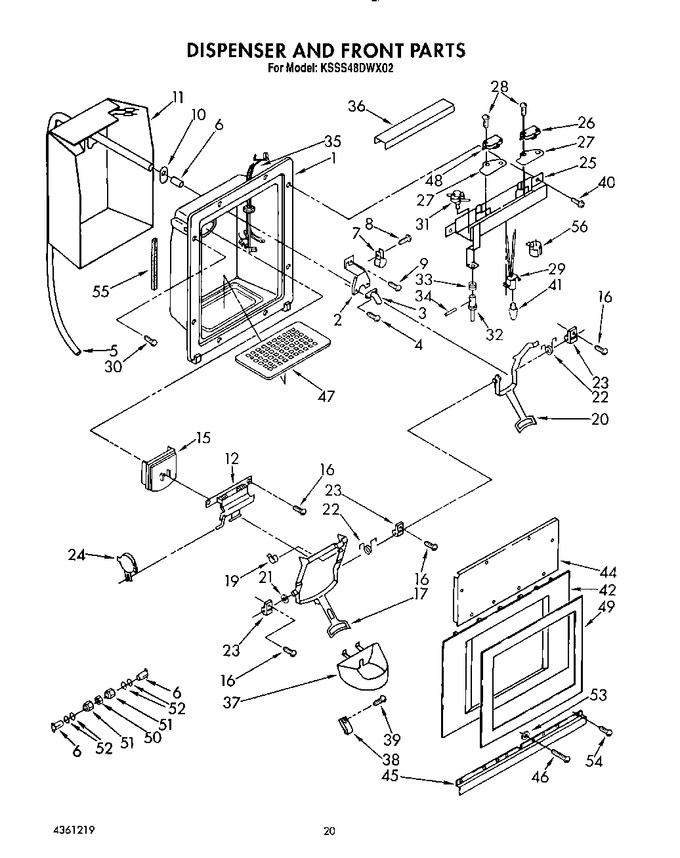

13 - Dispenser And Front


14 - Upper Unit, Lit/optional


15 - Lower Unit And Tube


16 - Air Flow And Reservoir


17 - Icemaker


18 - Top Grille And Unit Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1107943		Housing, Dispenser		Appelez-nous	-
2	987049		Bracket, Water Fitting		Appelez-nous	-
3	WP4388152		Water Fitting, Dispenser   (Replaces: 2155037)				$ 290.25
4	WP965173		Screw, 8 X 3/8   (Replaces: 487916)			Immediately	$ 11.87
5	W10823511		Water Tube   (Replaces: 987053)			Immediately	$ 32.41
6	4387491		Insert, Tube   (Replaces: 841707)				$ 8.23
7	WP488878		Clamp, Tube   (Replaces: 488878)				$ 12.18
8	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 11.26
9	488316		Screw, 8-18 X 3/4		Appelez-nous	-
10	987048		Grommet		Appelez-nous	-
11	2157430		Heater, Ice Dispenser		Appelez-nous	-
12	2147167		Ice Door Mechanism				$ 64.67
15	2147168		Door, Ice				$ 33.13
16	WP3400906		Screw, 9-12 X 1/2   (Replaces: 489000)				$ 9.05
17	1127421		Lever, Ice Dispenser Assy.		Appelez-nous	-
19	987917		Bearing, Clip		Appelez-nous	-
20	1115308		Lever, Water Dispenser Assy.		Appelez-nous	-
21	488307		Washer		Appelez-nous	-
22	983696		Spring, Lever				$ 21.26
23	983697		Bearing, Lever		Appelez-nous	-
24	WP1120581		Delay Mechanism   (Replaces: 1120581)				$ 223.72
25	1107454		Bracket, Control		Appelez-nous	-
26	841336		Switch		Appelez-nous	-
27	984683		Insulation, Switch		Appelez-nous	-
28	488361		Screw, 4-40 X 1		Appelez-nous	-
29	987265		Lamp Holder		Appelez-nous	-
30	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
31	851386		Light Switch		Appelez-nous	-
32	1107457		Plunger, Extension		Appelez-nous	-
33	983986		Spring, Plunger		Appelez-nous	-
34	983987		Retainer, Pin		Appelez-nous	-
35	934302		Wiring Harness, Door		Appelez-nous	-
36	984494		Shield, Wiring		Appelez-nous	-
37	1118269		Guiding, Ice		Appelez-nous	-
38	1119056		Stop Lever		Appelez-nous	-
39	489197		Screw		Appelez-nous	-
40	WP488729		Screw, 8-15 X 1/2 (6)   (Replaces: 487052)			Immediately	$ 8.28
41	WP22002263		Light Bulb   (Replaces: 851389)			Immediately	$ 14.85
42	1112887		Front Cover, Housing		Appelez-nous	-
44	1112836		Cover, Dispenser Opening		Appelez-nous	-
45	2000069		Trim, Front (2)		Appelez-nous	-
46	WP488729		Screw, 8-15 X 1/2   (Replaces: 487052)			Immediately	$ 8.28
47	983900		Grille, Overflow				$ 27.30
48	934316		Switch		Appelez-nous	-
49	1113383		Overlay, Cover		Appelez-nous	-
50	WP4211117		Union   (Replaces: 489098)				$ 10.46
51	WP245183		Nut, Ball Sleeve   (Replaces: 487857)				$ 8.84
52	488794		``o`` Ring Seal		Appelez-nous	-
53	487944		Washer (2)		Appelez-nous	-
54	W10759522		Screw (2)   (Replaces: 488568)				$ 8.24
55	482672		Seal		Appelez-nous	-
56	1129333		Shroud, Control		Appelez-nous	-
