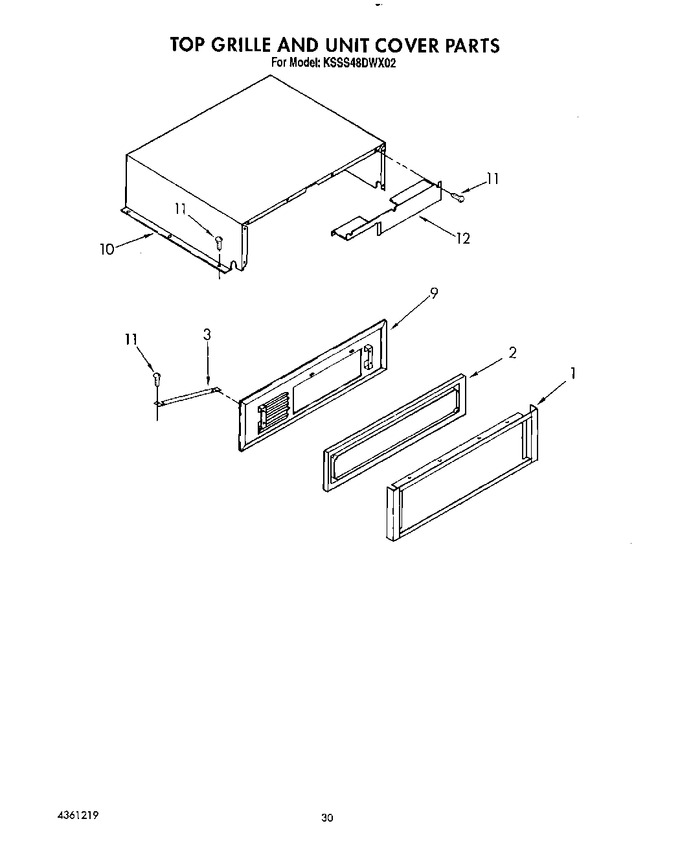

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1113868		Grille, Frame Assembly		Appelez-nous	-
2	1113865		Decorative Panel Assembly		Appelez-nous	-
3	1113356		Back Up Panel		Appelez-nous	-
9	2000627		Top Grille Assembly		Appelez-nous	-
10	1113490		Cover, Unit		Appelez-nous	-
11	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
12	1113300		Cover, Component Assembly		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
