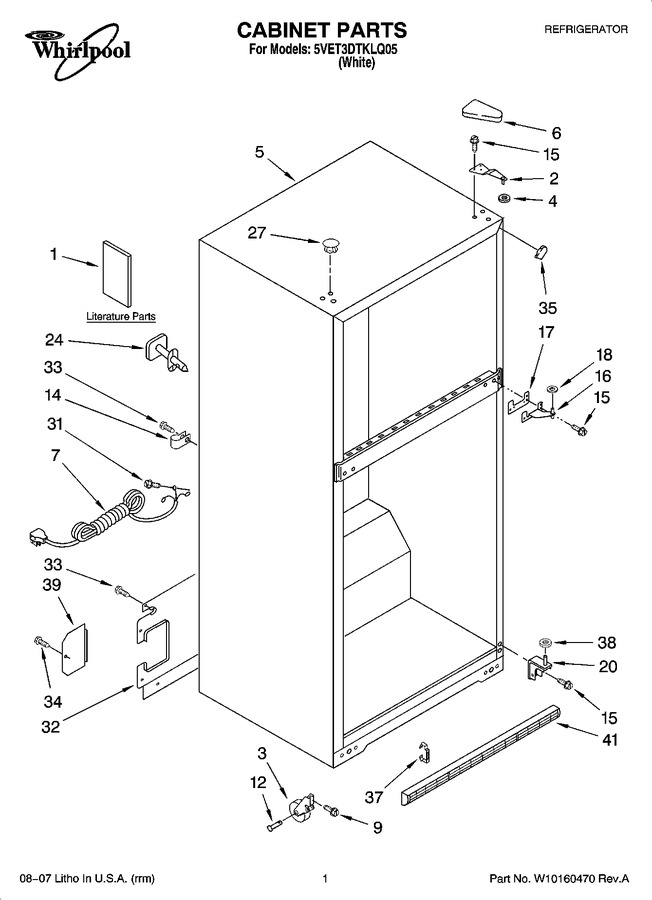

01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Freezer Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10129943		Service & Wiring Sheet		Appelez-nous	-
1	2318229		Use & Care Guide		Appelez-nous	-
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front   (Replaces: 2166108)			Immediately	$ 34.76
4	WP487576		Washer-nylon   (Replaces: 487576)			Immediately	$ 9.88
6	WP2213360		Cover Hinge   (Replaces: 2213360)				$ 20.19
7	W10123577		Cord-service		Appelez-nous	-
9	WP3400504		Screw   (Replaces: 3400504)				$ 7.55
12	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 19.12
14	489348		Clamp, Tube		Appelez-nous	-
15	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
16	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 11.43
18	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
20	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 9.28
27	WP2151652		Hole Plug (6)   (Replaces: 2201012)				$ 22.87
31	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
32	2302358		Cover, Unit				$ 57.60
33	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
34	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
35	WPW10283959		Corner Filler   (Replaces: 2201014)				$ 8.21
37	2189356		Clip-grille				$ 5.70
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
39	2166251		Cover, Water Valve				$ 6.43
41	2254313		Grille				$ 41.62
