View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts

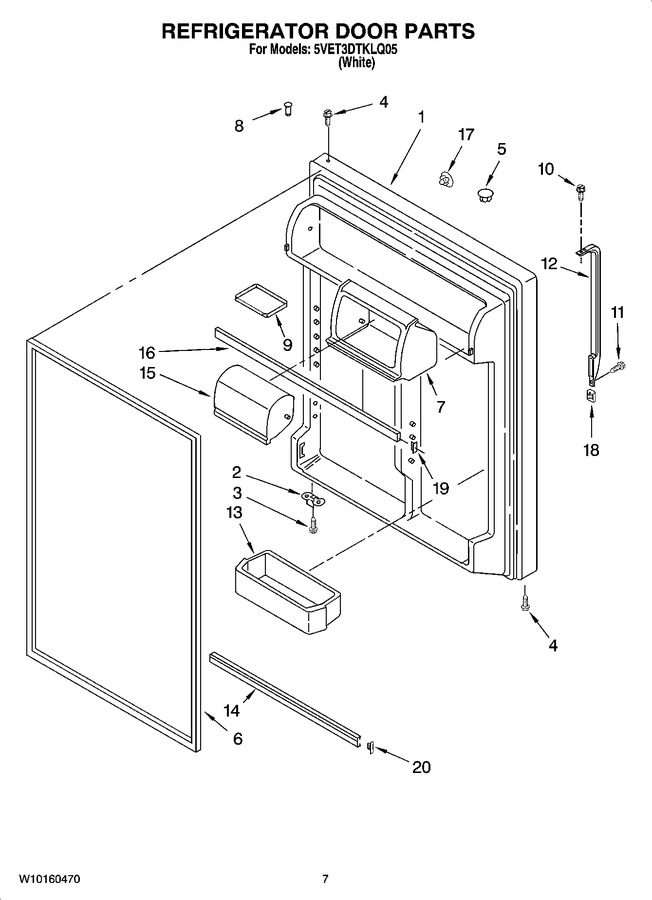

04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183868 | Refrigerator Door (includes 6 & 8) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 3 | WP681249 | Screw, 8 X 1/2 (Replaces: 489276) |
|
Immediately | $ 8.25 | ||||
| 4 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 8281206) |
|
$ 8.37 | |||||
| 5 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 6 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 7 | 2210566 | Housing Compartment |
|
$ 65.25 | |||||
| 8 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 9 | 2195388 | Tray, Door |
|
- | |||||
| 10 | 8534058 | Screw |
|
$ 8.87 | |||||
| 11 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 8.18 | |||||
| 12 | 4388947 | Handle (Replaces: 2213112W) |
|
$ 204.47 | |||||
| 13 | WP2204813 | Bin, Door Shelf (4) (Replaces: 2179606) |
|
Immediately | $ 81.20 | ||||
| 14 | WPW10421486 | Trim, Door Shelf (Replaces: 2195948) |
|
$ 114.74 | |||||
| 15 | 2218109 | Door, Compartment |
|
$ 33.66 | |||||
| 16 | 2159306 | Trim, Door Shelf |
|
$ 53.20 | |||||
| 17 | WP2189000 | Hole Plug, Handle (Replaces: 2189000) |
|
Immediately | $ 7.77 | ||||
| 18 | WP2193353W | Cover, Endcap (Replaces: 2193353W) |
|
$ 8.52 | |||||
| 19 | 2177340 | Endcap, Door Trim |
|
$ 5.84 | |||||
| 20 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 |
