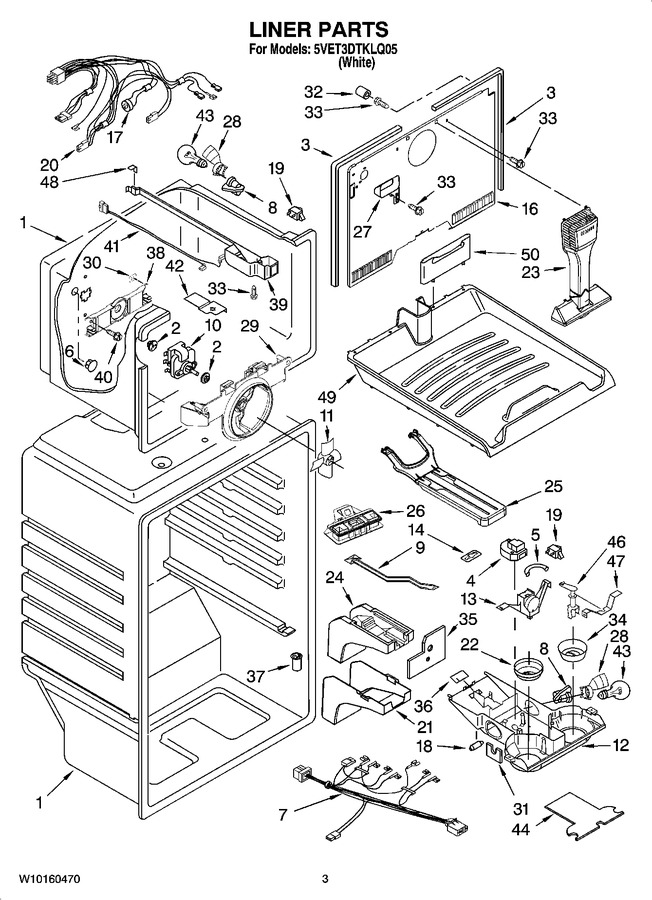

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Freezer Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2264462		Grommet (2)   (Replaces: 2197380)			Immediately	$ 46.17
3	WP2254360		Gasket, Evaporator Cover   (Replaces: 2254360)				$ 28.12
4	2321260		Timer, Defrost		Appelez-nous	-
5	2212485		Thermostat Tube Barrier				$ 5.92
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 8.03
7	W10123573		Wire Assy. Control Box		Appelez-nous	-
8	W11447232		Socket, Light (2)   (Replaces: W10134764)			Immediately	$ 13.87
9	2179858		Damper, Air		Appelez-nous	-
10	2321273		Fan Motor				$ 141.59
11	WP2163777		Fan Blade   (Replaces: 2200509)			Immediately	$ 66.15
12	W10149973		Control Box		Appelez-nous	-
13	W10129923		Thermostat Assembly (includes Items 5, 18, & 36)		Appelez-nous	-
14	2176341		Clip, Defrost Timer		Appelez-nous	-
16	2320193		Cover, Evaporator				$ 245.23
17	2321257		Defrost, Bi-metal		Appelez-nous	-
18	2200831		Weight, Thermal		Appelez-nous	-
19	2321286		Rocker Arm Switch		Appelez-nous	-
20	W10123571		Wire Assembly, Freezer Compartment		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	W10829461		Knob, Thermostat   (Replaces: 2200863)				$ 31.91
23	WP2254354		Air Tower   (Replaces: 2254354)				$ 108.24
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 131.03
25	2225473		Retainer, Freezer Floor		Appelez-nous	-
26	2212439		Air Seperator Assy		Appelez-nous	-
27	2205003		Cover, Hole		Appelez-nous	-
28	W10119914		Shroud		Appelez-nous	-
29	2254453		Bracket Fan Motor				$ 45.87
30	2320183		Retainer-screw		Appelez-nous	-
31	2179838		Control Box, Foil		Appelez-nous	-
32	WP487996		Cap   (Replaces: 487996)				$ 8.67
33	WP489478		Screw   (Replaces: 489478)				$ 8.18
34	2302536		Knob, Damper				$ 27.08
35	2204639		Shield, Heat		Appelez-nous	-
36	WP2205079		Seal, Rearthermostat   (Replaces: 2205079)				$ 10.01
37	WP2210509		Valve, Release   (Replaces: 2210509)				$ 99.15
38	2254454		Bracket, Evap. Fan, Rear			Immediately	$ 75.44
39	2184633		Housing Base		Appelez-nous	-
40	WP488163		Screw   (Replaces: 488208)				$ 7.92
41	W10123582		Wiring Harness, Freezer Light		Appelez-nous	-
42	2193491		Electrical Shield, Freezer Light				$ 5.81
43	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
44	2201082		Shield		Appelez-nous	-
46	2179859		Post, Damper		Appelez-nous	-
47	2163810		Bracket, Damper Knob				$ 6.01
48	2166284		Gasket, Rear				$ 6.06
49	2225476		Pullout, Freezer Floor				$ 26.15
50	2198768		Rear Fence Pull-out Freezer Floor				$ 35.55

    View Diagram in Separate Window       Print Part List
