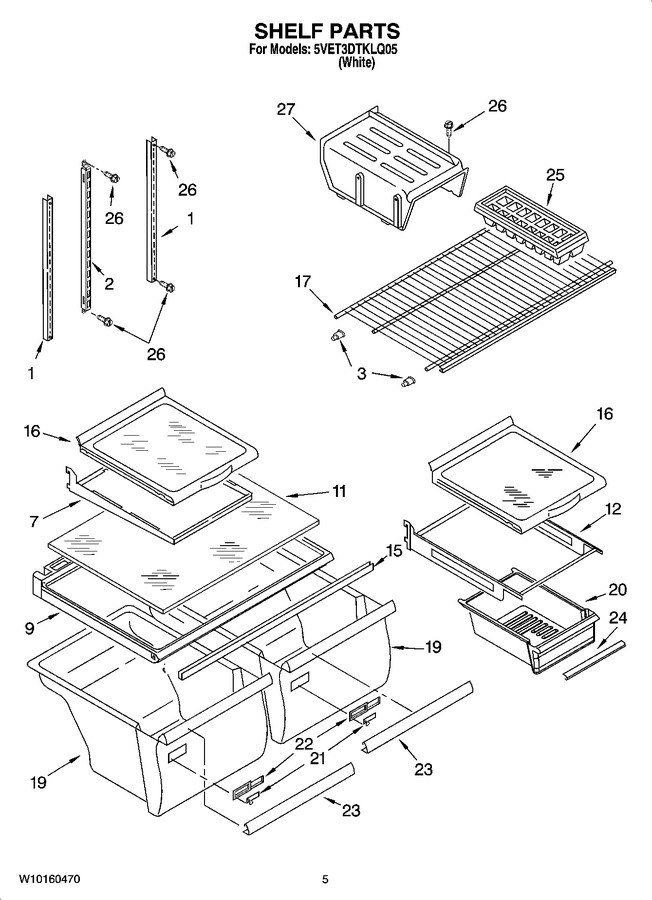

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.00 | ||||
| 7 | 2225698 | Frame Assembly, Shelf (2) |
|
- | |||||
| 9 | WP2314549 | Crisper Cover (Replaces: 2314500) |
|
$ 265.81 | |||||
| 11 | WP2176225 | Glass, Crisper Cover (Replaces: 2210573) |
|
$ 251.82 | |||||
| 12 | 2205162 | Frame Assembly, Meat Shelf |
|
$ 83.71 | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2314478) |
|
$ 97.22 | |||||
| 16 | WP999520 | Shelf Assembly, Spillguard (3) (Replaces: 2225721) |
|
$ 260.59 | |||||
| 17 | 2184667 | Shelf, Freezer |
|
- | |||||
| 19 | W10854037 | Pan, Crisper Includes 32,33,34. (Replaces: 2218130) |
|
Immediately | $ 170.66 | ||||
| 20 | WP2218132K | Pan, Meat Includes 44. (Replaces: 2218132) |
|
Immediately | $ 159.64 | ||||
| 21 | WP2176222 | Slide, Crisper (Replaces: 2176222) |
|
$ 27.35 | |||||
| 22 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.06 | |||||
| 23 | WP2195341 | Trim, Crisper Pan (Replaces: 2195341) |
|
$ 82.54 | |||||
| 24 | 2176357 | Trim, Meat Pan |
|
$ 33.74 | |||||
| 25 | WP841180A | Ice Cube Tray (Replaces: 841180) |
|
Immediately | $ 45.56 | ||||
| 26 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 27 | 2212770 | Shelf, Ice Tray |
|
$ 65.17 |
