SELECT A DIAGRAM
New Model Search:

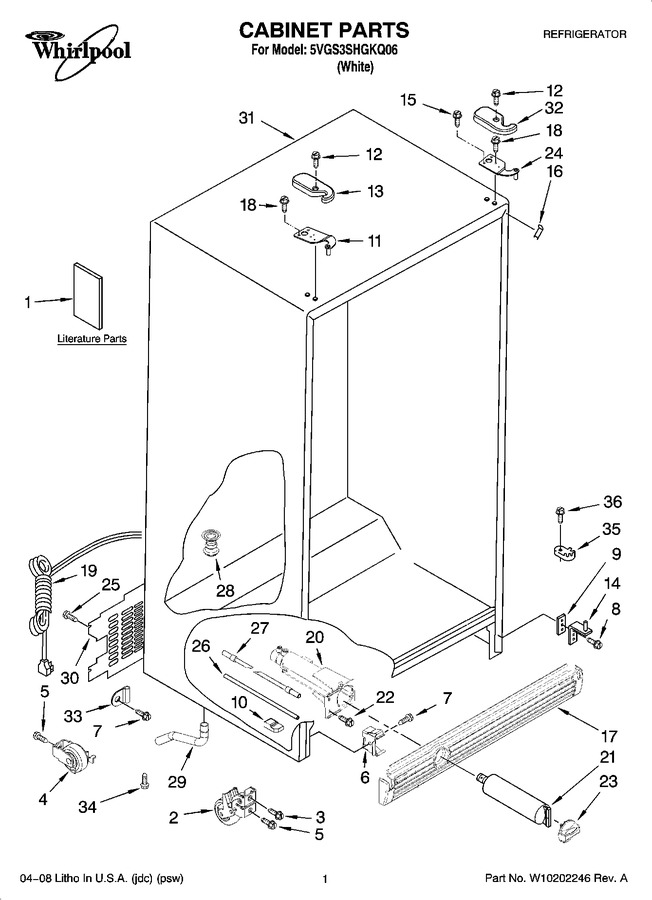

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10129871 | Use & Care Guide |
|
- | |||||
| 1 | 628371 | Modular Icemaker Service Sheet |
|
- | |||||
| 1 | W10142191 | Service & Wiring Sheet |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 14.42 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 7 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 8 | WP489497 | Screw (4) (Replaces: 3400113) |
|
Immediately | $ 29.09 | ||||
| 9 | 2209697 | Shim (2) |
|
$ 41.25 | |||||
| 10 | 2186489 | Block, Housing Support |
|
- | |||||
| 11 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 100.30 | |||||
| 12 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.96 | |||||
| 13 | WP2203407W | Hinge Cover (white) (Replaces: 2203407W) |
|
$ 21.79 | |||||
| 14 | 8201707 | Hinge Bottom (2) (Replaces: 2304322) |
|
$ 97.45 | |||||
| 15 | WP489128 | Screw (Replaces: 8281149) |
|
$ 11.40 | |||||
| 16 | 2304846 | Filler, Wrapper (white) |
|
- | |||||
| 17 | W10802713 | Grille (white) (Replaces: 2198467W) |
|
$ 127.93 | |||||
| 18 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 19 | W10123654 | Service Cord |
|
- | |||||
| 20 | WP2186443 | Housing, Water Filter (Replaces: 2186443) |
|
Immediately | $ 97.35 | ||||
| 21 | EDR5RXD1B | Water Filter (Replaces: 2203220) |
|
Immediately | $ 49.99 | ||||
| 22 | WP489500 | Screw (Replaces: 489500) |
|
$ 8.17 | |||||
| 23 | WP2186494W | Cap, Water Filter (white) (Replaces: 2186494W) |
|
$ 58.51 | |||||
| 24 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 103.13 | |||||
| 25 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 26 | WPW10350006 | Tube, Filter Outlet (Replaces: 2255012) |
|
$ 121.32 | |||||
| 27 | WP2304697 | Tube, Filter Inlet (Replaces: 2304697) |
|
$ 144.47 | |||||
| 28 | W11566763 | Drain Fitting (Replaces: 2304888) |
|
Immediately | $ 53.45 | ||||
| 29 | W11512417 | Extension Tube (Replaces: 2304937) |
|
$ 36.53 | |||||
| 30 | 2220757 | Cover, Unit |
|
- | |||||
| 32 | WP2203408W | Hinge Cover (white) (Replaces: 2203408W) |
|
$ 22.02 | |||||
| 33 | 489348 | Clamp-cord |
|
- | |||||
| 34 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 35 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.90 | ||||
| 36 | WP489483 | Screw (Replaces: 489483) |
|
$ 11.41 |
