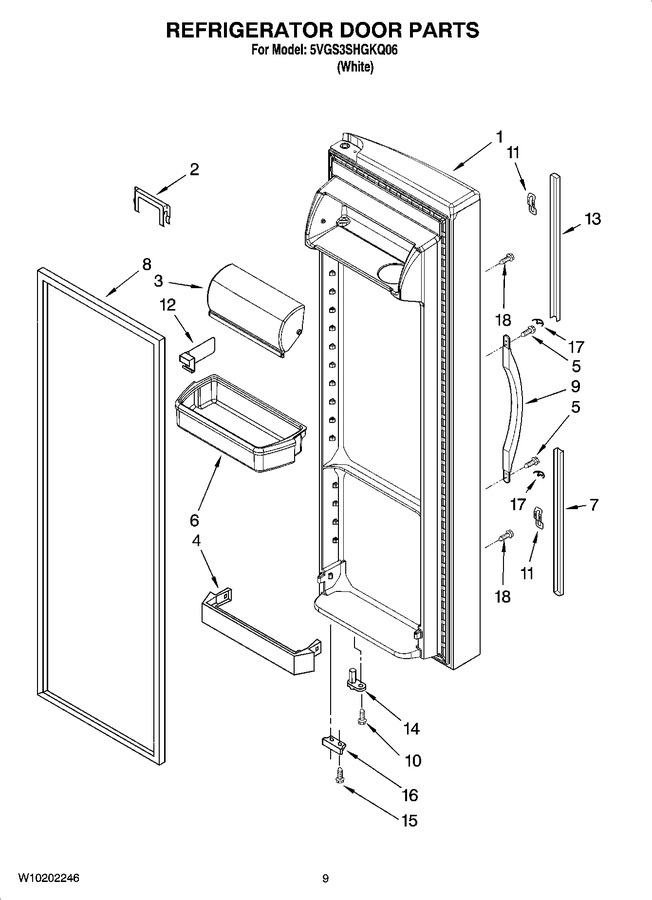

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207033W		Refrigerator Door (includes Item 8) (white)		Appelez-nous	-
2	2173643K		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	WPW10321304		Door Bin (3)   (Replaces: 2304235K)			Immediately	$ 44.73
7	2217186W		Extension, Bottom (white)		Appelez-nous	-
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221300)				$ 333.19
9	2217185W		Handle, Center (white)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
12	2195496K		Divider, Bin (3)		Appelez-nous	-
13	2217191W		Extension, Top (white)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2200082		Bracket, Door Stop				$ 5.83
17	2207010G		Jewelry, Handle (gold)		Appelez-nous	-
18	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
