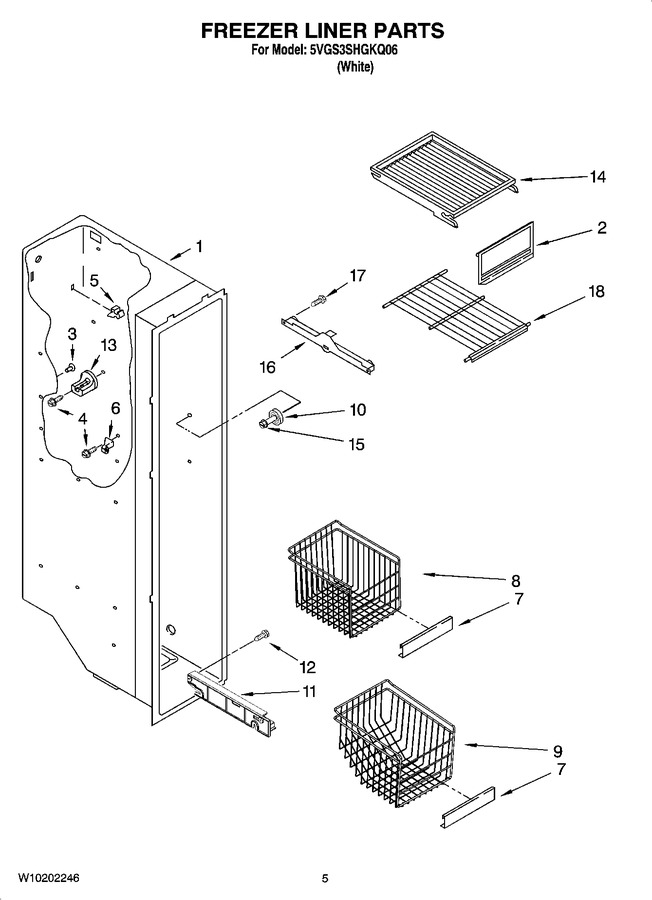

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2171712		Door, Ice Compartment				$ 69.91
3	2176134		Grommet				$ 5.83
4	W10142289		Screw   (Replaces: 3400893)				$ 9.61
5	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
6	2196206		Support, Stud		Appelez-nous	-
7	2195904K		Trim, Basket		Appelez-nous	-
8	2301192		Basket, Tall		Appelez-nous	-
9	2301193		Basket, Slope		Appelez-nous	-
10	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.87
11	2261449		Slide, Basket (right Side (2))				$ 46.07
11	2261448		Slide, Basket (left Side (2))				$ 46.07
12	W10759522		Screw (8)   (Replaces: W10004810)				$ 8.24
13	2196207		Stud, Rear				$ 7.61
14	1115380		Slide, Ice Door		Appelez-nous	-
15	WP3400806		Screw   (Replaces: 8281158)				$ 8.10
16	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 139.41
16	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 130.12
17	718257		Screw   (Replaces: 489100)		Appelez-nous	-
18	WP2174249K		Shelf (2)   (Replaces: 2174249K)				$ 221.75
