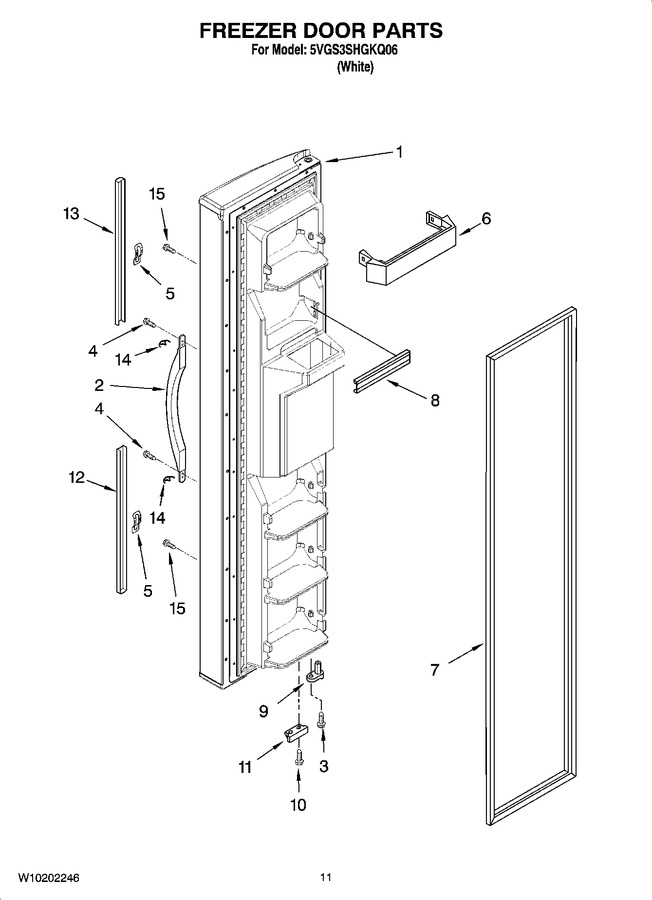

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2261779W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2217185W		Handle, Center (white)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
6	WP2156021		Trivet (4)   (Replaces: 2156021K)				$ 63.27
7	2159072		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221301)				$ 308.19
8	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 23.11
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 10.87
11	2200082		Bracket, Door Stop				$ 5.83
12	2217186W		Extension, Bottom (white)		Appelez-nous	-
13	2217191W		Extension, Top (white)		Appelez-nous	-
14	2207010G		Jewelry, Handle (gold)		Appelez-nous	-
15	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
