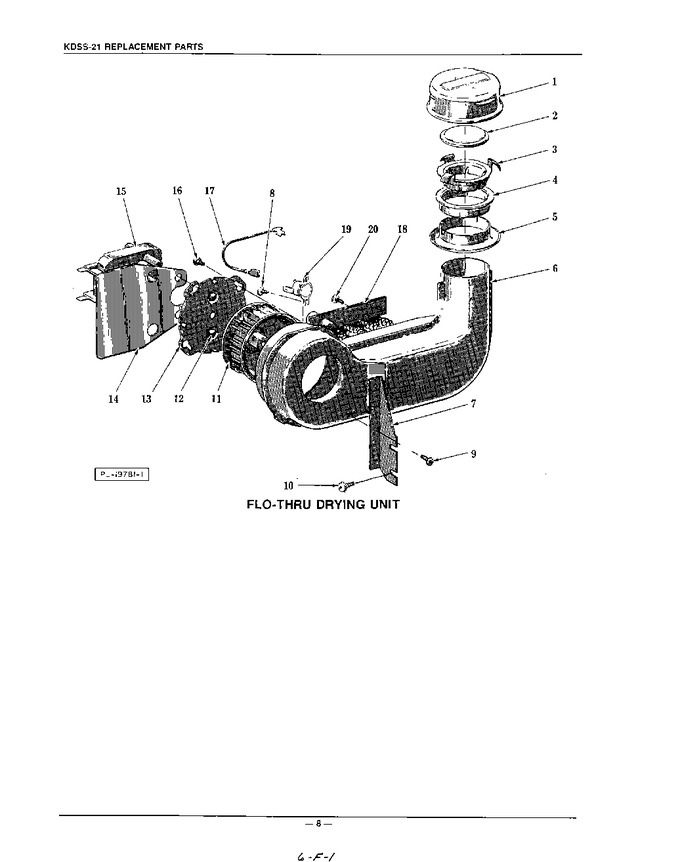

05 - Flo-thru Drying


06 - Fill And Over Fill


07 - Lower Wash Arm And Strainer


08 - Water Heating


09 - Upper Wash/rinse


10 - Frame And Miscellaneous


11 - Door And Latch


12 - Upper Rack And Track


13 - Lower Rack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	116189		Cover - Air Inlet		Appelez-nous	-
2	115976		Float - Check Valve		Appelez-nous	-
3	115988		Support - Air Inlet Cover		Appelez-nous	-
4	116151		Deflector - Air (upper)		Appelez-nous	-
5	DD81-03707A		Deflector - Air (lower)   (Replaces: 105174)				$ 142.84
6	241594		Dryer Housing & Bracket Assy. (incls. Items 7 & 9)		Appelez-nous	-
7	241506		Bracket - Housing Support		Appelez-nous	-
8	SD-33-89		Self-tapping Screw 8 X 3/8 Phil. Pan Undercut Hd., Type Ab		Appelez-nous	-
9	SD-33-89		Self-tapping Screw 8 X 3/8 Phil. Pan Undercut Hd., Type Ab		Appelez-nous	-
10	SD-36-29		Self-tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab		Appelez-nous	-
11	241566		Wheel - Blower (incls. Screws)		Appelez-nous	-
12	SD-33-12		Self-tapping Screw 10-24 X 5/16 Phil. Pan Hd. ``taptite``		Appelez-nous	-
13	82104		Pate - Blower Motor Mounting		Appelez-nous	-
14	240990		Cover - Dryer Motor		Appelez-nous	-
15	240330		Motor - Blower (115 V., 60 Hz.)		Appelez-nous	-
16	SD-33-89		Self-tapping Screw 8 X 3/8 Phil. Pan Undercut Hd., Type Ab		Appelez-nous	-
17	242802		Lead (heater To Thermostat) (115 V.)		Appelez-nous	-
18	240203		Heater - Open Coil (dryer Unit) (115 V.)		Appelez-nous	-
19	101332		Protector - Control		Appelez-nous	-
20	115989		Air Inlet Cover Assy. (incls. Items 1, 2 & 3)		Appelez-nous	-
20	SD-33-89		Self-tapping Screw 8 X 3/8 Phil. Pan Undercut Hd., Type Ab		Appelez-nous	-
20	241502-1		Dryer Unit Assy. (115 V., 60 Hz.) (incls. Items 6, 8 & 11 Thru 20)		Appelez-nous	-
20	241567-1		Blower Unit Assy. (115 V., 60 Hz.) (incls. Items 11 Thr U 15)		Appelez-nous	-
