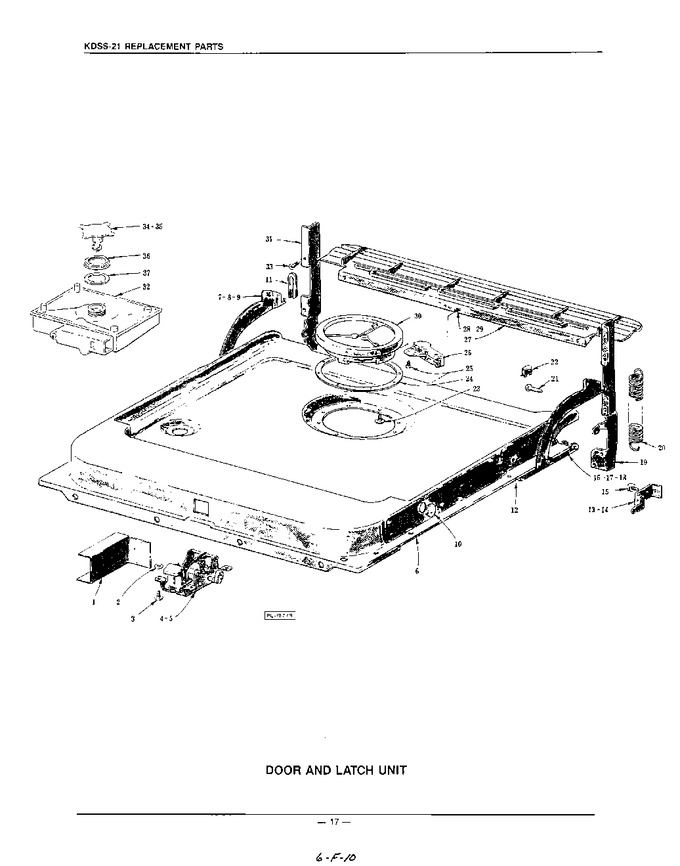

11 - Door And Latch


12 - Upper Rack And Track


13 - Lower Rack


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	116174		Cover - Wiring Harness		Appelez-nous	-
2	WS-2-51		Washer		Appelez-nous	-
3	SD-36-29		Self-tapping Screw 10-16 X 1/2 Phil. Truss Hd., Type Ab		Appelez-nous	-
4	242848		Latch Mechanism Assy. (incls. Iem 5)		Appelez-nous	-
5	242844		Actuator - Latch Switch		Appelez-nous	-
6	242223		Inner Door Assy (kdss-21)		Appelez-nous	-
6	243152-2		Inner Door Assy. (kdss-21a)		Appelez-nous	-
7	WS-28-15		Washer (rubber)		Appelez-nous	-
8	SC-66-7		Mach. Screw 10-32 X 5/16 Phil. Truss Hd		Appelez-nous	-
9	115977-3		Bracket - L.h. Door Stop		Appelez-nous	-
10	PB-3-12		Plug Button		Appelez-nous	-
11	88044		Bearing - Door Stop Insert		Appelez-nous	-
12	241970		Vapor Shield Kit				$ 642.32
13	240028		Bracket - R.h. Spring Mounting		Appelez-nous	-
14	240027		Bracket - L.h. Spring Mounting (not Shown)		Appelez-nous	-
15	SA-21-8		Screw & Washer Assy. 10 X 3/8 Phil. Hex Hd., Type Ab		Appelez-nous	-
16	115978-3		Bracket - R.h. Door Stop		Appelez-nous	-
17	SC-66-7		Mach. Screw 10-32 X 5/16 Phil. Truss Hd		Appelez-nous	-
18	WS-28-15		Washer (rubber)		Appelez-nous	-
19	115970-3		Bracket - R.h. Hinge		Appelez-nous	-
20	WP4162629		Spring - Door Co-balance   (Replaces: 241342)				$ 39.84
21	115910		Pin - Hinge		Appelez-nous	-
22	115968		Clip - Hinge Pin Retaining		Appelez-nous	-
23	240333		Screw & Washer Assy				$ 7.38
24	116065		Gasket - Detergent Dispenser		Appelez-nous	-
25	SD-13-11		Self-tapping Screw 8-18 X 1/2 Phil. Pan Hd., Type 25		Appelez-nous	-
26	241225		Bimetal Assy		Appelez-nous	-
27	115053-1		Baffle - Lower		Appelez-nous	-
28	SD-17-42		Self-tapping Screw 8-18 X 1/2 Phil. Truss Hd., Type Ab		Appelez-nous	-
29	240471		Cap		Appelez-nous	-
30	115153		Detergent Dispenser & Gasket Assy, (115 V., 60 Hz.) (incls. Item 24)		Appelez-nous	-
31	115971-3		Bracket - L.h. Hinge		Appelez-nous	-
32	241137		Rinse Agent Dispensing Valve		Appelez-nous	-
33	240388		Mach. Screw 10-32 X 1/2 Phil. Truss Hd., Ca Pt. ``taptite``		Appelez-nous	-
34	241163		Fill Hole Plug Assy. (incls. Item 35)		Appelez-nous	-
35	241101		Washer - Fill Hole Plug		Appelez-nous	-
36	116198-2		Nut - Rinse Agent Dispenser		Appelez-nous	-
37	115840		Gasket - Rinse Agent Dispenser		Appelez-nous	-
