Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 241267 Water Heating Element Assy. (incls. Items 2, 3, 4, 5 & 6) Appelez-nous -
2 241135-2 Grommet - Heat Element Appelez-nous -
3 WS-29-25 Washer Appelez-nous -
4 241134 Nut - Heat Element Appelez-nous -
5 241135-2 Grommet - Heat Element Appelez-nous -
6 241134 Nut - Heat Element Appelez-nous -
7 242527 Terminal - Grounding (heat Element) Appelez-nous -
8 242434 Bracket - Thermostat Appelez-nous -
9 242627 Thermostat Appelez-nous -
10 116136 Nut - Heat Sensing Appelez-nous -
11 67500-88 ``o`` Ring Appelez-nous -
12 116141 Gasket - Heat Transfer Appelez-nous -
13 116137 Spring - Thermostat Mounting Appelez-nous -
14 16222 Terminal - Grounding Appelez-nous -
15 242626 Protector - Heat Control Appelez-nous -
16 116138 Screw - Thermostat Thumb Appelez-nous -
17 242625 Thermostat - Heat Control Appelez-nous -
18 116282 Lead Assy. (thermoprotector) (not Shown) Appelez-nous -
18 116227-00 Cover - Thermostat   (Replaces: 116227) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

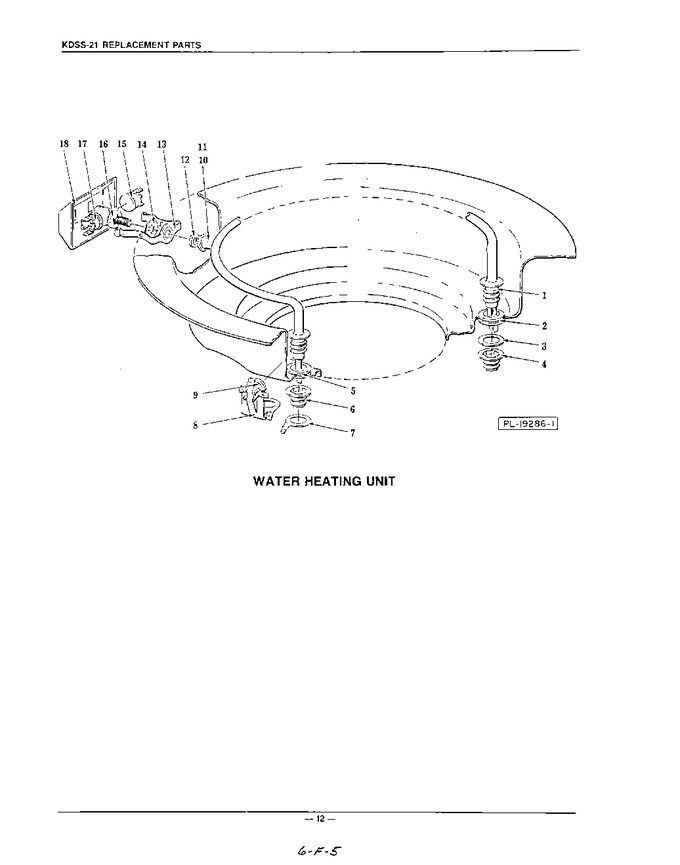

Diagram for KUDS21SS0
