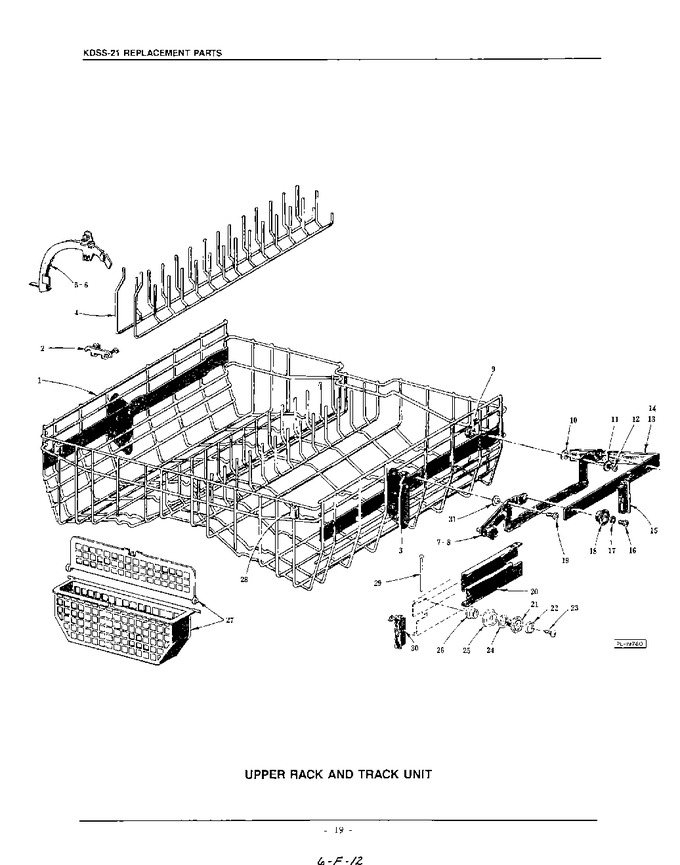

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241195		Upper Rack Assy. (incls. Items 2, 4, 5, 6 & 28)		Appelez-nous	-
2	101685		Clip - Partition Retaining		Appelez-nous	-
3	DA91-04856C		Nut - Roller   (Replaces: 114054)				$ 534.62
4	115948		Partition - Upper Rack		Appelez-nous	-
5	108783		Quadrant - Flexo Divider (l.h.)		Appelez-nous	-
6	108784		Quadrant - Flexo Divider (r.h.) (not Shown)		Appelez-nous	-
7	116155		Adjustable Rack Track Mech. (r.h.)		Appelez-nous	-
8	116154		Adjustable Rack Track Mech. (l.h.)		Appelez-nous	-
9	DA91-04856C		Nut - Roller   (Replaces: 114054)				$ 534.62
10	241034		Bearing & Spacer - Rack Roller		Appelez-nous	-
11	241025		Washer - Rack		Appelez-nous	-
12	SD-32-20		Self-tapping Screw 10-16 X 5/8 Phil. Pan Hd., Type B		Appelez-nous	-
13	116114		Lift - Receiver (r.h.)		Appelez-nous	-
14	116113		Lift - Receiver (l.h.) (not Shown)		Appelez-nous	-
15	240288		Bumper - Rack Track		Appelez-nous	-
16	SC-69-10		Mach. Screw 8-32 X 1/4 Phil. Pan Hd. ``nylok``		Appelez-nous	-
17	WS-28-14		Washer		Appelez-nous	-
18	116008		Roller - Upper Rack		Appelez-nous	-
19	SD-32-20		Self-tapping Screw 10-16 X 5/8 Phil. Pan Hd., Type B		Appelez-nous	-
20	240989		Track - Rack		Appelez-nous	-
21	241952		Stud - Rack Roller		Appelez-nous	-
22	241950		Gasket - Rack Stud		Appelez-nous	-
23	SD-36-22		Self-tapping Screw 10-16 X 3/8 Phil. Pan Hd., ``plascrew``		Appelez-nous	-
24	241954		Washer - Roller Spacing		Appelez-nous	-
25	4172010		Roller - Rack Track   (Replaces: 241951)				$ 3.95
26	241953		Bushing - Rack Track		Appelez-nous	-
27	DE81-02043A		Small Items Basket & Lid Assy   (Replaces: 83696)				$ 0.94
28	240228		Bumper - Upper Rack		Appelez-nous	-
29	89746		Stud - Bumper Retaining		Appelez-nous	-
30	240288		Bumper - Rack Track		Appelez-nous	-
31	241034		Bearing & Spacer - Rack Roller		Appelez-nous	-
