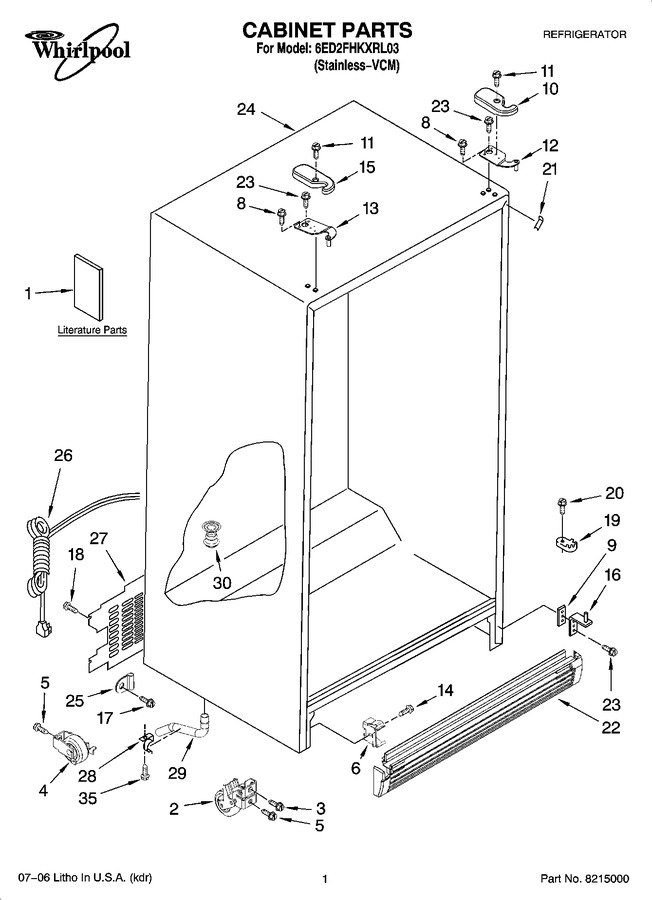

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2318267 | Energy Label |
|
- | |||||
| 1 | 2308181 | Use & Care Guide |
|
- | |||||
| 1 | 2317466 | Service & Wiring Sheet |
|
- | |||||
| 2 | 2174748 | Front Roller (2) |
|
- | |||||
| 3 | W10850698 | Screw (Replaces: 3400517) |
|
$ 11.88 | |||||
| 4 | WPW10250570 | Roller (rear) (2) (Replaces: 2196236) |
|
$ 40.17 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 6 | WP2155013 | Clip, Grille (Replaces: 2155013) |
|
Immediately | $ 7.72 | ||||
| 8 | 3400858 | Screw |
|
- | |||||
| 9 | 2209697 | Shim |
|
$ 41.25 | |||||
| 10 | WP2203408B | Hinge Cover (rc) (black) (Replaces: 2203408B) |
|
$ 18.63 | |||||
| 11 | WP8281227 | Screw (Replaces: 8281227) |
|
$ 10.44 | |||||
| 12 | WP2203771 | Hinge Top (rc) (Replaces: 2203771) |
|
$ 98.22 | |||||
| 13 | WP2203770 | Hinge Top (fc) (Replaces: 2203770) |
|
$ 95.52 | |||||
| 14 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 15 | WP2203407B | Hinge Cover (fc) (black) (Replaces: 2203407B) |
|
$ 19.52 | |||||
| 16 | 8201707 | Hinge Bottom (2) (Replaces: 2304322) |
|
$ 88.90 | |||||
| 17 | W11693756 | Screw (Replaces: 488687) |
|
Immediately | $ 14.06 | ||||
| 18 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.67 | |||||
| 19 | WPW10329686 | Door Closer, Lower Cam (2) (Replaces: 2155311) |
|
Immediately | $ 5.43 | ||||
| 20 | WP489483 | Screw (Replaces: 489483) |
|
$ 10.87 | |||||
| 21 | 2196097 | Filler, Wrapper (black) |
|
- | |||||
| 22 | 2198469B | Grille (black) |
|
- | |||||
| 23 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 25 | 489348 | Clamp |
|
- | |||||
| 26 | 2187915 | Service Cord |
|
- | |||||
| 27 | 2214572 | Unit Cover |
|
- | |||||
| 28 | WP1108439 | Clip, Drain Tube (Replaces: 1108439) |
|
$ 10.74 | |||||
| 29 | WP1108438 | Tube, Extension (Replaces: 1108438) |
|
Immediately | $ 31.33 | ||||
| 30 | W11566763 | Drain Fitting (Replaces: 940139) |
|
Immediately | $ 50.90 | ||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 |
