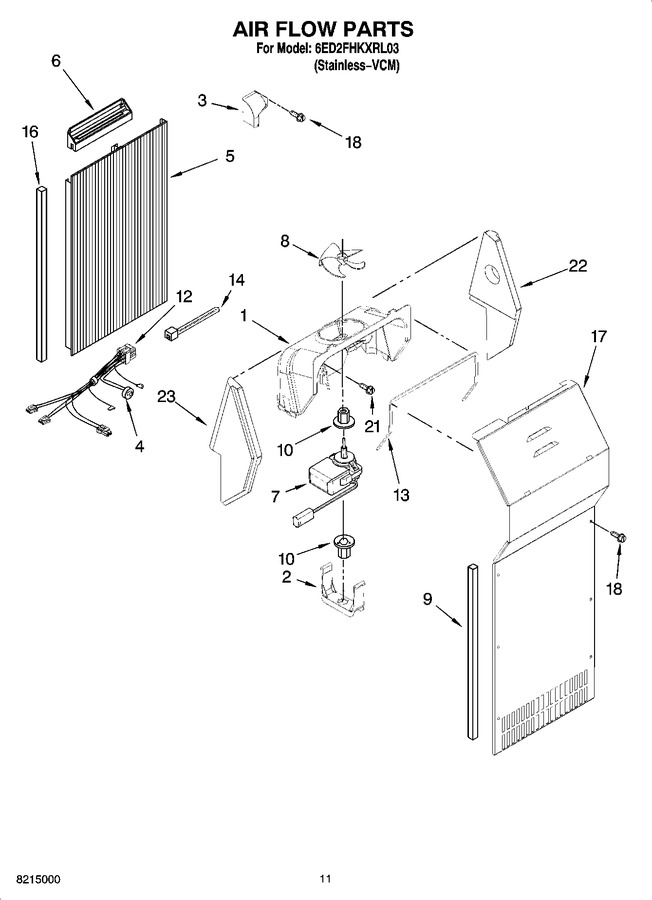

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11254898 | Fan Scroll (Replaces: 2182119) |
|
Immediately | $ 323.27 | ||||
| 2 | 2155590 | Retainer Fan Motor |
|
$ 5.83 | |||||
| 3 | 2161231 | Air Scoop |
|
$ 42.67 | |||||
| 4 | WPW10225581 | Bi-metal, Defrost (Replaces: 2188824) |
|
Immediately | $ 50.77 | ||||
| 5 | W11503180 | Air Duct Freezer (Replaces: 2203592) |
|
$ 64.40 | |||||
| 6 | 2149544 | Diffuser, Air Duct |
|
$ 52.53 | |||||
| 7 | WP2321275 | Fan Motor (Replaces: 2303346) |
|
$ 303.64 | |||||
| 8 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 9 | WP2304241 | Gasket (2) (Replaces: 2304241) |
|
Immediately | $ 82.80 | ||||
| 10 | WP2176759 | Fan Grommet (2) (Replaces: 2176759) |
|
$ 7.77 | |||||
| 12 | 2310130 | Harness, Fan Evaporator (includes 4) |
|
- | |||||
| 13 | WP2155789 | Gasket, Fan Scroll (Replaces: 2155788) |
|
$ 7.79 | |||||
| 14 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 7.90 | |||||
| 16 | 4388500 | Gasket (Replaces: 2203875) |
|
$ 90.39 | |||||
| 17 | 2203840 | Cover, Evaporator (includes 9) |
|
- | |||||
| 18 | 4389654 | Screw (Replaces: 8281159) |
|
$ 13.89 | |||||
| 21 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 22 | 4388358 | Support, R.s (Replaces: 2203595) |
|
$ 31.16 | |||||
| 23 | 4388358 | Support, L.s (Replaces: 2203596) |
|
$ 31.16 |
