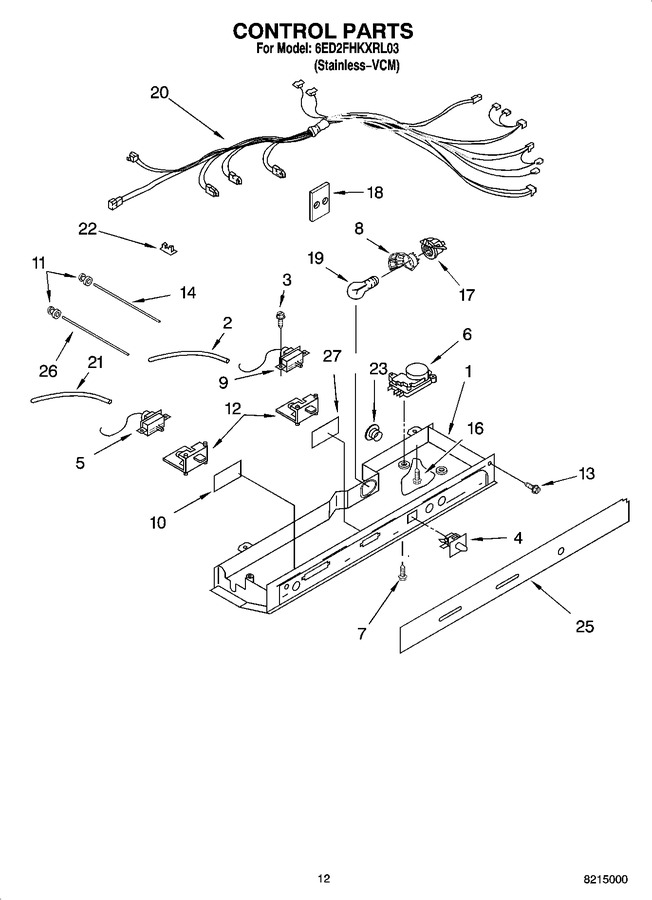

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat (rc)   (Replaces: 2182150)				$ 7.95
3	2006254		Screw (3)   (Replaces: 489214)				$ 13.13
4	WP2149705		Light Switch   (Replaces: 2313410)			Immediately	$ 40.40
5	2187158		Thermostat (fc)				$ 90.49
6	WP2188379		Defrost Timer   (Replaces: 2188380)				$ 193.40
7	489392		Screw (2)   (Replaces: 489398)				$ 13.35
8	WP2175210		Shroud, Light   (Replaces: 2175210)				$ 82.61
9	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 248.67
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 21.22
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.67
14	2179920		Light Bar (rc)				$ 37.08
16	WP488488		Screw   (Replaces: 489290)				$ 7.68
17	4387478		Light Socket   (Replaces: 2317419)			Immediately	$ 110.16
18	2172931		Heat Shield				$ 70.38
19	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
20	2206509		Control Box Harness		Appelez-nous	-
21	WP2196003		Tube Barrier, Thermostat (fc)   (Replaces: 2196003)				$ 7.95
22	1115375		Clip, Wiring				$ 11.15
23	940014		Hole Plug				$ 18.33
25	2261750		Escutcheon, Control Box		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
