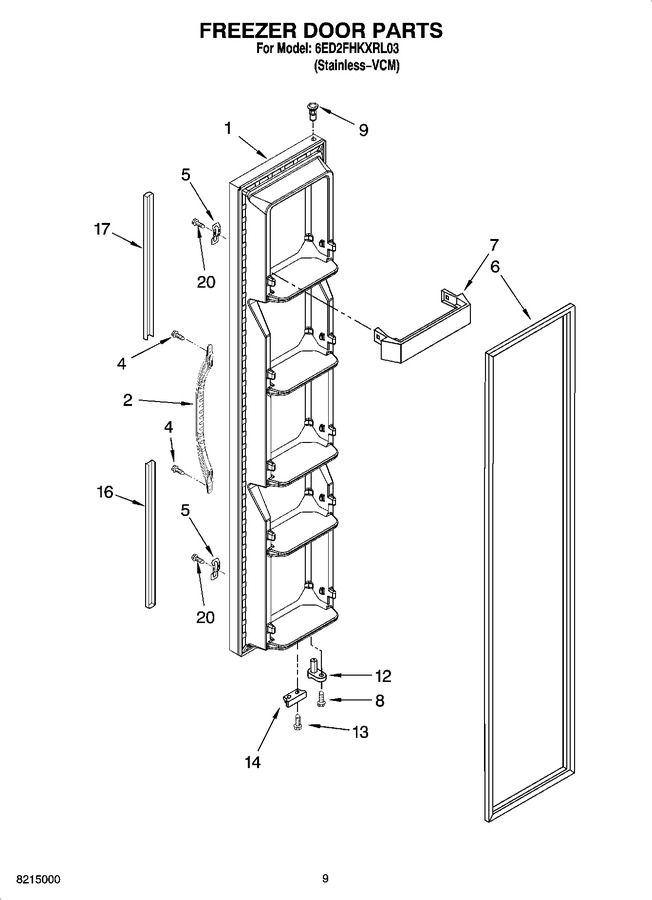

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206725L		Freezer Door (includes 6) (stainless-vcm)		Appelez-nous	-
2	2186649B		Handle, Center (black)				$ 72.96
4	WP489491		Screw   (Replaces: 489491)				$ 6.95
5	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
6	2159080		Door, Gasket Magnetic   (Replaces: 2221312)				$ 310.39
7	2182776K		Trivet, Door Shelf (5)				$ 69.37
8	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
9	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop   (Replaces: 2206629B)				$ 40.03
16	WP2194969B		Extension, Bottom (black)   (Replaces: 2194969B)				$ 116.40
17	WP2194971B		Extension, Top (black)   (Replaces: 2194971B)				$ 106.63
20	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
