SELECT A DIAGRAM

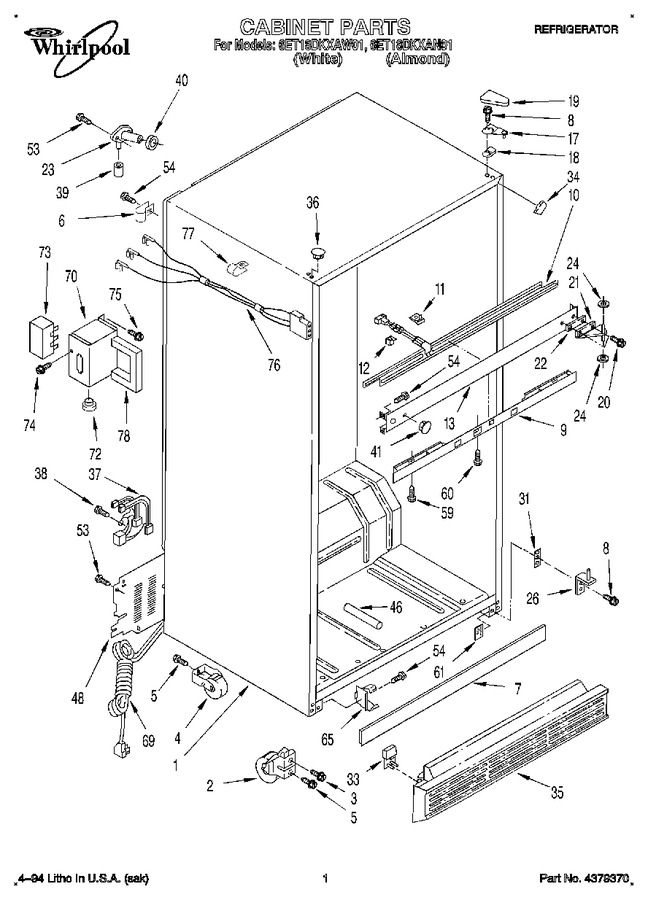

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2152011		Roller, Front		Appelez-nous	-
3	489393		Screw, 5/16-24 X 1-1/4		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 40.17
5	488454		Screw, 1/4-28 X 1/2		Appelez-nous	-
6	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.18
7	2172703		Deck Rail Cover		Appelez-nous	-
8	WP999367		Screw   (Replaces: 489367)				$ 7.86
9	2148582		Control, Front Cover		Appelez-nous	-
10	2158623		Heater, Mullion		Appelez-nous	-
11	1129018		Clip, Center Rail (6)		Appelez-nous	-
12	2149077		Spacer (3)		Appelez-nous	-
13	2172701		Center Rail		Appelez-nous	-
17	WP2189412		Hinge, Top   (Replaces: 2157593)				$ 114.50
18	2157269		Shim, Hinge Top		Appelez-nous	-
19	2160404		Hinge Cover (almond)		Appelez-nous	-
19	WP2213360		Hinge Cover (white)   (Replaces: 2160403)				$ 19.23
20	WP999367		Screw   (Replaces: 489105)				$ 7.86
21	2151453		Hinge, Center		Appelez-nous	-
22	836155		Shim, Hinge Center		Appelez-nous	-
23	WP2196157		Fitting, Water Tube   (Replaces: 2154080)			Immediately	$ 11.99
24	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
26	WP2254473		Hinge Butt, Bottom   (Replaces: 2157300)				$ 8.47
31	2172744		Spacer		Appelez-nous	-
33	1125665		Corner Filler, Grille (white)		Appelez-nous	-
33	1125670		Corner Filler, Grille (almond)		Appelez-nous	-
34	1118059		Filler, Wrapper Corner (2) (almond)		Appelez-nous	-
34	1118058		Filler, Wrapper Corner (2) (white)		Appelez-nous	-
35	1125664		Grille (white)		Appelez-nous	-
35	1125669		Grille (almond)		Appelez-nous	-
36	2151653		Hole Plug (6) (almond)		Appelez-nous	-
36	WP2151652		Hole Plug (6) (white)   (Replaces: 2151652)				$ 21.78
37	2165296		Wiring Assy. Intermediate		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 7.95
39	WP487996		Cap   (Replaces: 487996)				$ 8.26
40	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
41	1129062		Hole Plug (white)		Appelez-nous	-
46	2172888		Fitting, Drain		Appelez-nous	-
48	2160519		Cover, Unit		Appelez-nous	-
53	WP489464		Screw, 8 X 1/2   (Replaces: 489337)			Immediately	$ 7.83
54	WP489478		Screw   (Replaces: 489242)				$ 7.75
59	WP488163		Screw, 8 X 13/16   (Replaces: 488725)				$ 7.54
60	WP489174		Screw   (Replaces: 489174)				$ 6.95
61	2157315		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.72
69	1129331		Service Cord		Appelez-nous	-
70	2158579		Enclosure, Term.		Appelez-nous	-
72	1129449		Bushing		Appelez-nous	-
73	1129346		Terminal Block		Appelez-nous	-
74	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.82
75	00489346		Screw   (Replaces: 489346)				$ 380.15
76	2209657		Wiring Assy. Terminal Block   (Replaces: 2165297)		Appelez-nous	-
77	489348		Clamp-nylon		Appelez-nous	-
78	2167227		Gasket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
