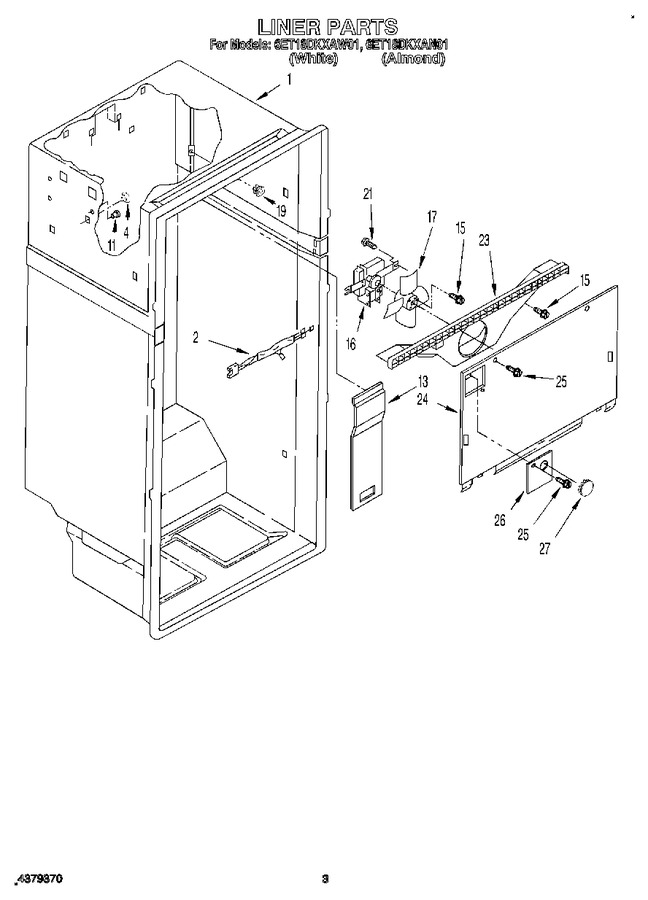

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1127626		Wiring, Fan Motor		Appelez-nous	-
4	WP941839		Hole Plug (3)   (Replaces: 941839)				$ 7.65
11	1110779		Grommet (4)		Appelez-nous	-
13	2153966		Cover, Air Duct		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 7.75
16	2169115		Motor, Fan		Appelez-nous	-
17	WP1100938		Blade, Fan   (Replaces: 2162448)				$ 87.87
19	531933		Grommet (2)				$ 5.70
21	489168		Screw		Appelez-nous	-
23	1116598		Scroll, Fan		Appelez-nous	-
24	2151668		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 489196)			Immediately	$ 7.79
26	WP2217784		Hole Cover, Evaporator   (Replaces: 1120124)				$ 44.97
27	1103725		Hole Plug		Appelez-nous	-
