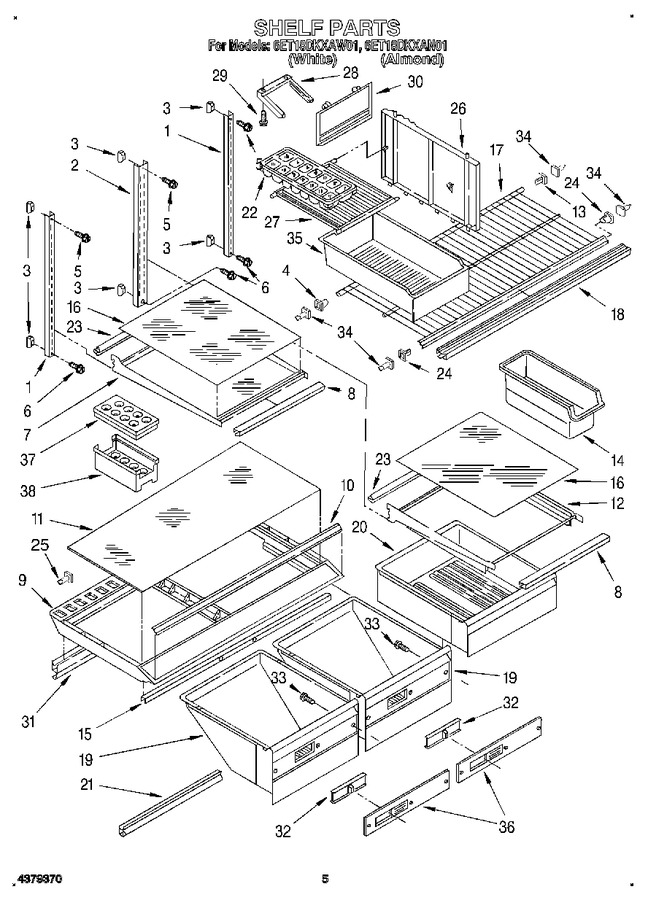

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 29.86
4	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 39.68
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP488163		Screw, 8 X 1-1/4   (Replaces: 488163)				$ 7.54
7	1116693		Shelf, Cantilever (4)		Appelez-nous	-
8	2148575		Trim, Shelf		Appelez-nous	-
9	2148570		Crisper Cover		Appelez-nous	-
10	2172715		Trim, Crisper Cover		Appelez-nous	-
11	1124926		Glass, Crisper Cover		Appelez-nous	-
12	1116703		Pan Shelf, Cantilever		Appelez-nous	-
13	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 39.68
14	WP982704		Container   (Replaces: 1127196)				$ 31.00
15	WP2172748		Crisper, Support   (Replaces: 2172750)				$ 97.22
16	1124924		Shelf, Glass (5)		Appelez-nous	-
17	1116722		Shelf, Freezer		Appelez-nous	-
18	2148584		Trim, Shelf Front		Appelez-nous	-
19	2148572		Pan, Crisper		Appelez-nous	-
20	2148580		Pan, Meat		Appelez-nous	-
21	1116713		Crisper, Gasket Front (2)		Appelez-nous	-
22	WP841180A		Ice Tray (4)   (Replaces: 841180)			Immediately	$ 45.56
23	1115165		Reflector, Shelf		Appelez-nous	-
24	946356		Shelf Stud		Appelez-nous	-
25	1106612		Shelf Stud (2)				$ 7.56
26	1118054		Divider		Appelez-nous	-
27	1106624		Shelf, Ice Compartment		Appelez-nous	-
28	1106817		Slide, Ice Compartment		Appelez-nous	-
29	WP489478		Screw   (Replaces: 489242)				$ 7.75
30	2148741		Door, Ice Compartment		Appelez-nous	-
31	1116714		Crisper, Gasket Rear (2)		Appelez-nous	-
32	2148524		Slide, Crisper		Appelez-nous	-
33	489268		Screw		Appelez-nous	-
34	946355		Support, Stud		Appelez-nous	-
35	W11625904		Pan, Utility   (Replaces: 2148742)				$ 64.60
36	2148573		Crisper, Pan Front		Appelez-nous	-
37	1107388		Egg Container, Top		Appelez-nous	-
38	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
38	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
38	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
38	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
38	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
38	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
38	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
38	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
38	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
38	833938		Kit, Terminal Connector				$ 8.07
38	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
38	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
38	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
38	1107384		Egg Container, Bottom		Appelez-nous	-
38	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
38	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
38	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
38	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
38	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
38	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
38	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
38	2172761		Door Reversal Instructions		Appelez-nous	-
38	3354773		Installation Instructions		Appelez-nous	-
38	350942		Primer White (13 Oz. Spray Can)				$ 89.66
38	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
38	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
38	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	LIT2165004		Care & Use Guide		Appelez-nous	-
	LIT677969		Do-it-yourself Manual Ref./fzr.		Appelez-nous	-
	LIT2158656		Service & Wiring Sheet		Appelez-nous	-
	LIT2165183		Energy Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84
