01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf, Lit/optional


05 - Unit


06 - Refrigerator Door


07 - Freezer Door

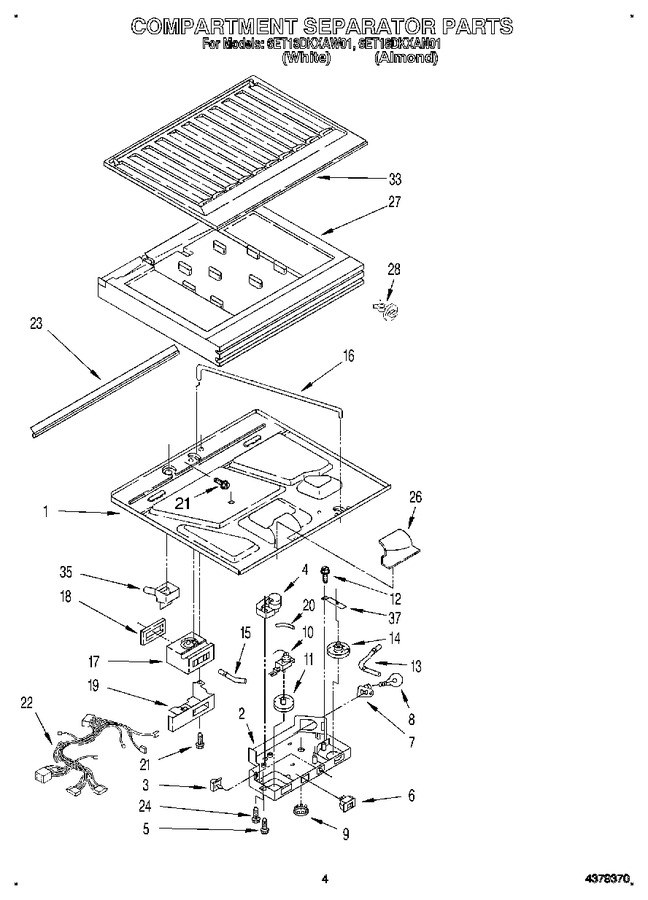

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2172814		Bottom, Compartment Separator		Appelez-nous	-
2	1126029		Box, Control		Appelez-nous	-
3	WP2149705		Switch, Light   (Replaces: 2149705)			Immediately	$ 40.40
4	WP2166867		Timer, Defrost   (Replaces: 2162053)				$ 178.79
5	WP487353		Screw   (Replaces: 488693)				$ 7.57
6	938049		Switch, Toggel		Appelez-nous	-
7	4387478		Socket (2)   (Replaces: 1129370)			Immediately	$ 110.16
8	WP67002552		Bulb, Light (2)   (Replaces: 851682)			Immediately	$ 11.75
9	940014		Hole Plug				$ 18.33
10	1123394		Thermostat Assembly   (Replaces: 1105693)				$ 209.48
11	1114315		Knob, Thermostat		Appelez-nous	-
12	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 10.72
13	1105475		Light, Bar		Appelez-nous	-
14	1114314		Knob, Air Control		Appelez-nous	-
15	1105476		Light, Bar		Appelez-nous	-
16	1116565		Rod, Connecting		Appelez-nous	-
17	2160771		Air Diffuser Assembly		Appelez-nous	-
18	2157255		Gasket, Air Diffuser		Appelez-nous	-
19	1108176		Cover, Air Diffuser		Appelez-nous	-
20	WP2196003		Thermostat, Tube Barrier   (Replaces: 1106693)				$ 7.95
21	WP489478		Screw   (Replaces: 489242)				$ 7.75
22	2158621		Wiring Assembly, Control Box		Appelez-nous	-
23	2159733		Gasket, Bottom Separator		Appelez-nous	-
24	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 7.95
26	1108196		Insulation, Filler		Appelez-nous	-
27	1116569		Insulation, Compartment Separator		Appelez-nous	-
28	2172812		Clip, Thermostat Tube Retention		Appelez-nous	-
33	2157398		Separator, Compartment (top)		Appelez-nous	-
35	937065		Cup, Drain		Appelez-nous	-
37	1105457		Bracket, Control Knob		Appelez-nous	-
