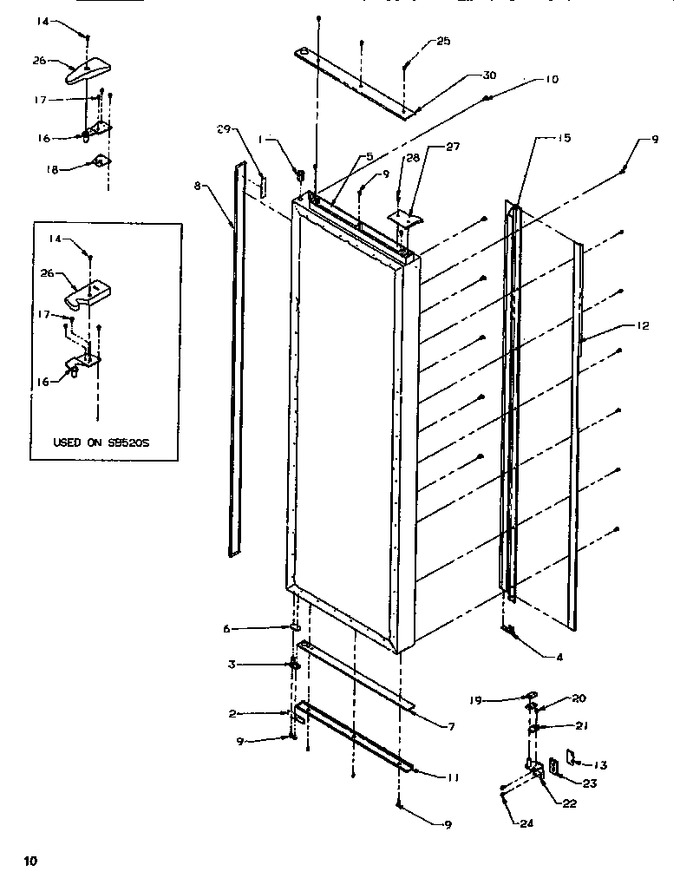

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10393802 | Bushing, Door (wht) |
|
- | |||||
| 2 | C8972403 | Stop, Door (blk) |
|
- | |||||
| 3 | R0181181 | Kit,dr Closure (Replaces: D7751404) |
|
Immediately | $ 7.55 | ||||
| 4 | 10871211 | Cap, Ref Handle Bot(gray) |
|
- | |||||
| 5 | 10979101 | Exten. W Ref Door |
|
- | |||||
| 6 | 10361801 | Shim, Dr Bushing |
|
- | |||||
| 7 | 10494603 | Support Ref Trim (btm) |
|
- | |||||
| 8 | 10494505 | Trim, Vertical |
|
- | |||||
| 9 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 10 | 10281002 | Grommet, Screw |
|
- | |||||
| 11 | 10602603 | Trim, Refrig Door (bottom) |
|
- | |||||
| 12 | 10945936 | Insert, Stn Handle |
|
- | |||||
| 13 | 10860201 | Kit, Bot.hinge Shim |
|
- | |||||
| 14 | M0202325 | Screw |
|
- | |||||
| 15 | 10875738 | Handle, Ref Door |
|
- | |||||
| 16 | 10495804 | Hinge, Top R (e-ct) |
|
- | |||||
| 16 | 10495803 | Hinge, Top (e-ct) |
|
- | |||||
| 17 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 18 | B8389001 | Shim, Top Hinge |
|
- | |||||
| 19 | B8387701 | Shim, Door Closure |
|
- | |||||
| 19 | B8387702 | Shim, Door Closure |
|
- | |||||
| 20 | W11227370 | Screw, Lock Brake Mounting (Replaces: M0220418) |
|
Immediately | $ 14.91 | ||||
| 21 | R0181181 | Kit,dr Closure (Replaces: D7748302) |
|
Immediately | $ 7.55 | ||||
| 22 | 10496108 | Hinge, Bottom |
|
- | |||||
| 23 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 23 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 24 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 25 | M0213815 | Screw |
|
- | |||||
| 26 | 10504210 | Cover Hinge |
|
- | |||||
| 27 | 10871111 | Cap, Ref Handle Top (gray) |
|
- | |||||
| 28 | M0213517 | Screw K |
|
- | |||||
| 29 | R0195042 | Double Backed Tape 6ft Roll |
|
- | |||||
| 30 | 10494410 | Trim, Ref Door Top |
|
- |
