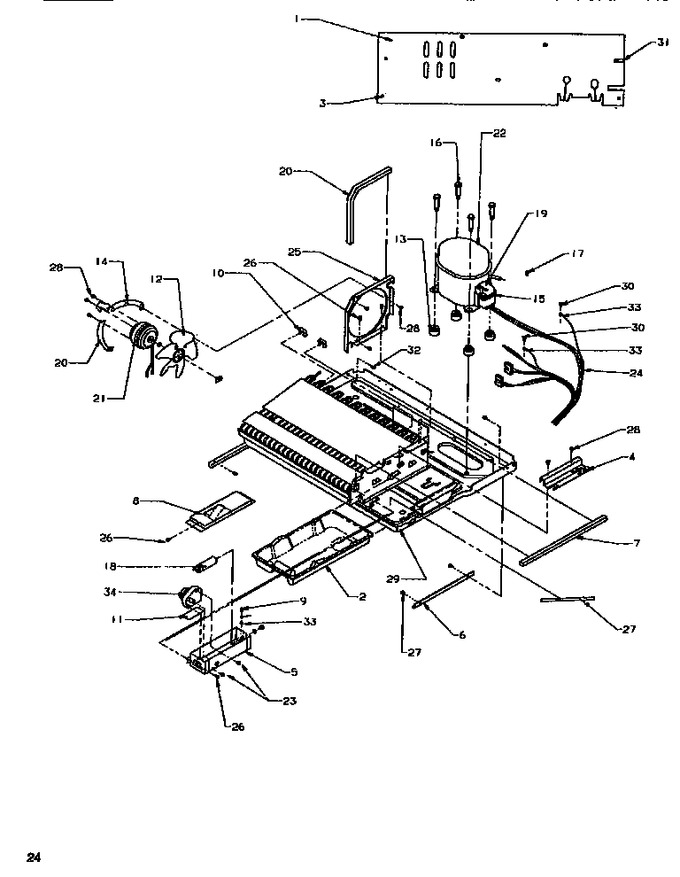

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | D7788910 | Assy,mc Back |
|
- | |||||
| 2 | 10845601 | Pan, Drain |
|
- | |||||
| 3 | M0201216 | Screw - Sm |
|
- | |||||
| 4 | 10845302 | H.v. Box Shelf-e Ct |
|
- | |||||
| 5 | 10277016 | H V Box-e Ct |
|
- | |||||
| 6 | C8913701 | Support, Mc |
|
- | |||||
| 7 | A3030302 | Gasket |
|
- | |||||
| 8 | 10276904 | Top, H.v. Box (e-ct) |
|
- | |||||
| 9 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 10 | 10874601 | Clip-cond. |
|
- | |||||
| 11 | A3189364 | Gasket, Foam |
|
- | |||||
| 12 | B5742602 | Blade, Fan |
|
- | |||||
| 13 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 14 | WPW10339879 | Tie (Replaces: M0321202) |
|
$ 8.30 | |||||
| 15 | 10899501 | Clamp, Term. Cover |
|
- | |||||
| 16 | M0221523 | Screw, Shldr |
|
- | |||||
| 17 | 10899601 | Overload/relay |
|
- | |||||
| 18 | W10848274 | Capacitor (Replaces: 10958301) |
|
$ 185.85 | |||||
| 19 | 10899701 | Cover, Terminal |
|
- | |||||
| 20 | C8982102 | Brkt,cond. Mtr |
|
- | |||||
| 21 | D7846901 | Motor-condenser |
|
- | |||||
| 22 | W10309997 | Compressor (220/230 Vac 50hz) (Replaces: Y10740301) |
|
$ 583.93 | |||||
| 23 | M0218118 | Screw |
|
- | |||||
| 24 | 10959301 | Harness, M.c. |
|
- | |||||
| 25 | 10845504 | Cond. Fn Shrd |
|
- | |||||
| 26 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 27 | M0217224 | Screw |
|
- | |||||
| 28 | M0223803 | Screw |
|
- | |||||
| 29 | 10883404 | Assy, Cond/pan E-ct |
|
- | |||||
| 30 | WP489128 | Screw (Replaces: M0253516) |
|
$ 11.40 | |||||
| 31 | M0108001 | Clamp, Tube |
|
- | |||||
| 32 | WP22002933 | Screw, Sm (Replaces: M0211357) |
|
$ 8.06 | |||||
| 33 | M0272803 | Lock Washer |
|
- | |||||
| 34 | 10129307 | Kit, Defrost Timer (230 Vac) |
|
- |
