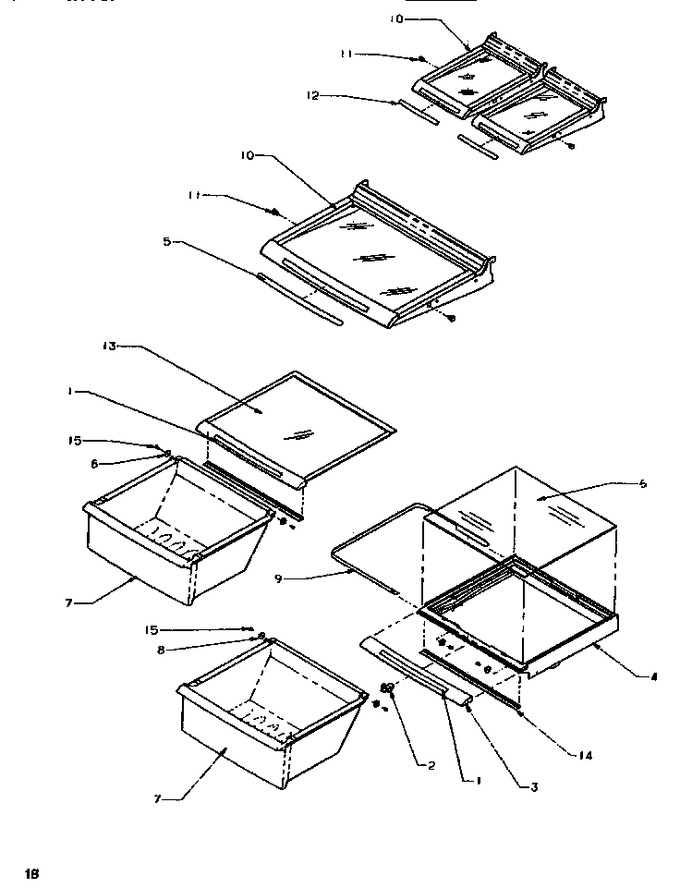

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10954011		Insert, Shelf		Appelez-nous	-
2	10852501		Slide, Crisper/deli		Appelez-nous	-
3	10872201		Trim, Crisper Frt		Appelez-nous	-
4	10782901		Frame,crisper		Appelez-nous	-
4	10783001		Frame-crisper		Appelez-nous	-
5	10954002		Insert, Shelf		Appelez-nous	-
6	Y10370065		Glass-shelf		Appelez-nous	-
7	10783201		Pan,crisper		Appelez-nous	-
7	10783301		Pan, Crisper		Appelez-nous	-
8	10481001		Roller, Pan				$ 10.99
9	10882702		Band-crisper		Appelez-nous	-
9	10882701		Band, Crisper		Appelez-nous	-
10	10809501		Shelf Full Glide		Appelez-nous	-
10	10809701		Shelf, Split Guide		Appelez-nous	-
11	10875101		Stop, Shelf		Appelez-nous	-
12	10954001		Insert, Shelf		Appelez-nous	-
13	10783101		Shelf- Top Crisper		Appelez-nous	-
14	10968801		Seal-crisp Front		Appelez-nous	-
15	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.79
NI	10883301		Ass`y, Split Glide Shelf		Appelez-nous	-
NI	10882802		Ass`y, Crisp Frame		Appelez-nous	-
NI	10883302		Ass`y, Full Glide Shelf		Appelez-nous	-
NI	10882801		Assy, Crisper Frame		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
