SELECT A DIAGRAM

01 - Back Unit


02 - Controls & Cabinet (ref/frz)


03 - Door/hinge/trim Fz


04 - Door/hinge/trim Ref


05 - Drain & Rollers & Cabinet Back


06 - Evap & Handling (fz)


07 - Fz Door


08 - Fz Shelving & Ref Light


09 - Machine Compartment


10 - Ref Door


11 - Shelving & Drawers (ref)


12 - Shelving & Drawers (ref)

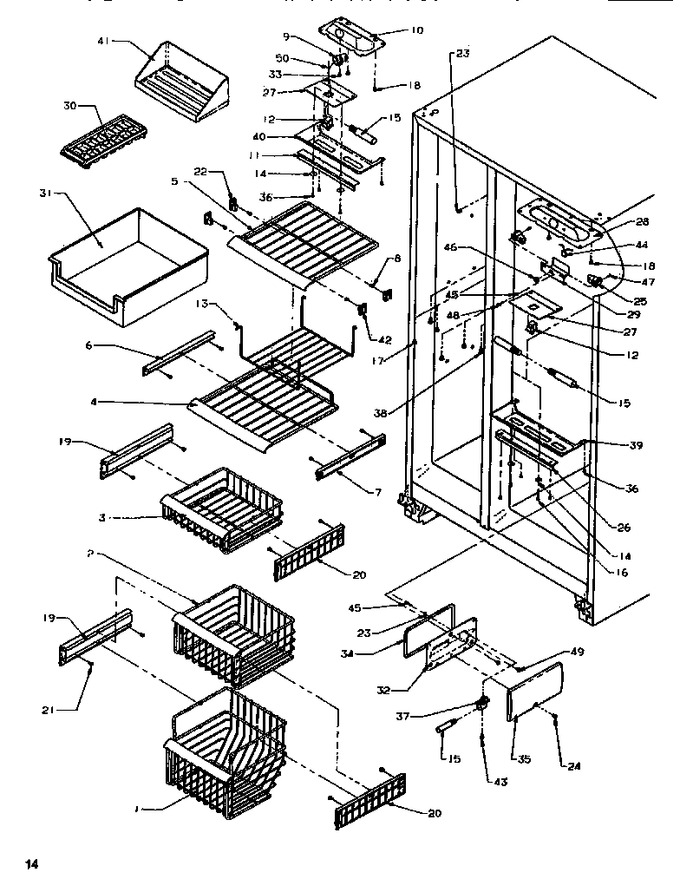

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y10950501		Basket, 11`` Freezer		Appelez-nous	-
2	Y10950401		Basket, 7`` Freezer		Appelez-nous	-
3	Y10950301		Basket, 3`` Freezer		Appelez-nous	-
4	10941001		Shelf, Freezer Wire		Appelez-nous	-
5	10950701		Shelf, Stat. Freezer		Appelez-nous	-
6	10991501		Rail, L. Shelf		Appelez-nous	-
7	10991401		Rail- R Shelf		Appelez-nous	-
8	12991101		Screw, Sm   (Replaces: M0210816)				$ 13.47
9	D7845102		Socket, Lamp		Appelez-nous	-
10	D7863903		Housing Freezer Light		Appelez-nous	-
11	10014715		Shield, Light		Appelez-nous	-
12	W11384469		Switch, Light   (Replaces: C3680308)			Immediately	$ 39.09
13	10950801		Rack, Freezer		Appelez-nous	-
14	M0270508		Washer		Appelez-nous	-
15	M0360402		Light Bulb (230/240 Vac)		Appelez-nous	-
16	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
17	M0581001		Grommet, Screw		Appelez-nous	-
18	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
19	10991701		Rail, L. Dbl Shelf		Appelez-nous	-
20	10991601		Rail- R Double		Appelez-nous	-
21	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
22	10941201		Support, L Shelf		Appelez-nous	-
23	M0580007		Grommet, Screw		Appelez-nous	-
24	WP90767		Screw, Sm   (Replaces: M0224416)			Immediately	$ 8.25
25	D7845101		Socket, Lamp		Appelez-nous	-
26	10014716		Shield, Light		Appelez-nous	-
27	D7297603		Cover, Light Sw		Appelez-nous	-
28	D7716408		Housing-ref Light		Appelez-nous	-
29	D7844803		Socket Shield		Appelez-nous	-
30	WP841180A		Tray, Ice   (Replaces: D7725401)			Immediately	$ 47.84
31	D7806211		Pan, Ice		Appelez-nous	-
32	10270202		Housing Light		Appelez-nous	-
33	M0217224		Screw		Appelez-nous	-
34	A3189337		Gasket		Appelez-nous	-
35	Y10270101		Cover-light		Appelez-nous	-
36	M0219646		Screw-shldr.		Appelez-nous	-
37	D7845102		Socket, Lamp		Appelez-nous	-
38	10976901		Mount,frz		Appelez-nous	-
39	10493201		Cover, Ref. Light		Appelez-nous	-
40	10493301		Cover, Frz Light		Appelez-nous	-
41	10870801		Shelf, Ice Cream		Appelez-nous	-
42	10941101		Support, R Shelf		Appelez-nous	-
43	M0217225		Screw		Appelez-nous	-
44	Y10244001		Harness, Ref Light		Appelez-nous	-
45	M0320905		Terminal Ground A		Appelez-nous	-
46	A4554813		Snap Bushing		Appelez-nous	-
47	M0217225		Screw		Appelez-nous	-
48	A4539626		Pop Rivet		Appelez-nous	-
49	WP90767		Screw   (Replaces: M0211216)			Immediately	$ 8.25
50	D7383435		Wire Jumper		Appelez-nous	-
NI	Y00000000		See Note Add-on Ice Maker -- (available Through Sales)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
