Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10875735 Handle-l Fz Dr Appelez-nous -
2 10871204 Cap, Frz Handle Bot(almond) Appelez-nous -
3 10945938 Insert-l Handle Appelez-nous -
4 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

5 C8972406 Stop, L Door Appelez-nous -
6 R0181181 Kit,dr Closure   (Replaces: D7751403) In-Stock Immediately $ 7.55

7 WP67005716 Shim, Dr Closure (blk)   (Replaces: B8387704) Special Order $ 7.83

7 B8387703 Shim, Door Closure Appelez-nous -
8 10602507 Trim- L Fz Dr Bot Appelez-nous -
9 10494604 Support, Fz Trim Appelez-nous -
10 10361802 Shim, Dr Bushing Appelez-nous -
11 10494520 Trim-l Vertical Appelez-nous -
12 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

13 R0195042 Double Backed Tape 6ft Roll Appelez-nous -
14 10495806 Hinge, Top L (e-ct) Appelez-nous -
15 10504212 Cover, Hinge Appelez-nous -
16 M0202325 Screw Appelez-nous -
17 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

18 10979202 Ext, Fz Dr Almond Appelez-nous -
19 W11214483 Screw, Mach   (Replaces: M0202321) In-Stock Immediately $ 14.72

20 10952101 Harness-fz Door Appelez-nous -
21 R0181181 Kit,dr Closure   (Replaces: D7748302) In-Stock Immediately $ 7.55

22 10496104 Kit,hinge Lh Btm(b) Appelez-nous -
23 10399501 Kit,btm Hinge Shim Appelez-nous -
23 10399502 Kit,btm Hinge Shim Appelez-nous -
24 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

25 W11227370 Screw, Lock Brake Mounting   (Replaces: M0220418) In-Stock Immediately $ 14.91

26 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

27 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

28 10860201 Kit, Bot.hinge Shim Appelez-nous -
29 10871104 Cap, Frz Handle Top(almond) Appelez-nous -
30 M0213517 Screw K Appelez-nous -
31 M0213815 Screw Appelez-nous -
32 10494205 Trim-l Fz Dr Top Appelez-nous -
NOTE: R134a Refrigerant System: This Refrigerator System Incorporates R134a Refrigerant And Approved Service Techniques And Equipment Should Be Applied If Sealed Sy Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

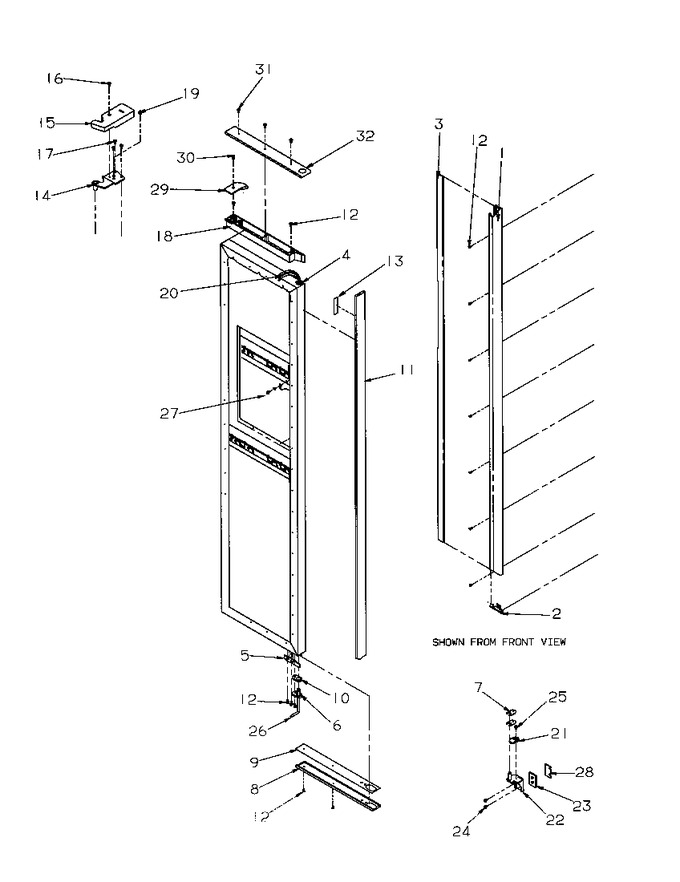

Diagram for SBD20S4L (BOM: P1190001W L)
