Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 B0523562 Insul. By The Ft. Appelez-nous -
2 C8982801 Retainer, Door Liner Appelez-nous -
3 10881201L Ass`y, Fz Dr Fm (alm) Appelez-nous -
4 10534707 Shelf, Half Frz Appelez-nous -
5 10525507 Shelf, Frz Dr Appelez-nous -
6 10359702 Gasket (w Frz Dr) Appelez-nous -
7 10860801 Liner, Frz Dr I/w Appelez-nous -
8 D7828601 Retainer, Door Liner Appelez-nous -
9 M0219730 Screw Special Order $ 7.65

10 10063102 Clip, Door Dike Appelez-nous -
11 10063207 Dike, I & W Appelez-nous -
12 B0523563 Insulation Ft. K Appelez-nous -
13 10063208 Dike, I & W Appelez-nous -
14 12016901 Insul, Batt (ref. Door) Appelez-nous -
15 12016902 Insul, Batt (ref. Door) Appelez-nous -
16 10237602 Retainer, Package Appelez-nous -
17 10281002 Grommet, Screw Appelez-nous -
18 B8391226 Retainer- L Facade Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

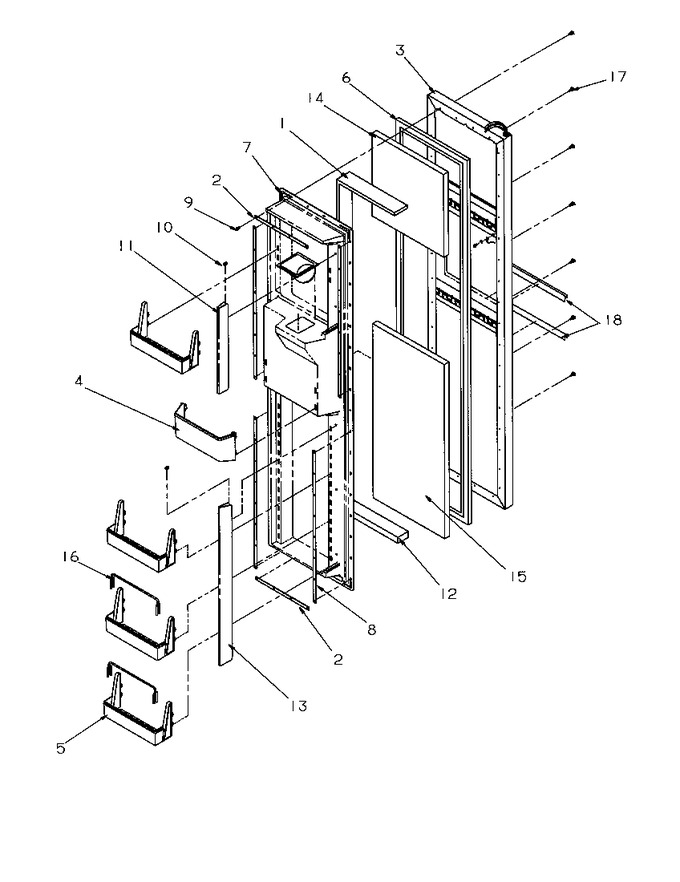

Diagram for SBD20S4L (BOM: P1190001W L)
