Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 D7788909 Ass`y, Mc Back Appelez-nous -
2 10845601 Pan, Drain Appelez-nous -
3 M0201216 Screw - Sm Appelez-nous -
4 10845302 H.v. Box Shelf-e Ct Appelez-nous -
5 10276906 Top, Hv Box Appelez-nous -
6 10874601 Clip-cond. Appelez-nous -
7 A3030358 Gasket-foam Appelez-nous -
8 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25

9 10678002 Cont, Adap. Defrost Appelez-nous -
10 WP22002933 Screw, Sm   (Replaces: M0211357) Special Order $ 8.06

11 M0585504 Support Appelez-nous -
12 B5742602 Blade, Fan Appelez-nous -
13 WPW10169124 Grommet, Compressor   (Replaces: 10835901) Special Order $ 7.55

14 M0585703 Clamp, Wire Appelez-nous -
15 M0221523 Screw, Shldr Appelez-nous -
16 10377015 Overload Appelez-nous -
17 A3293504 Bushing, Snap Appelez-nous -
18 WP65889-4 Capacitor   (Replaces: C8931604) In-Stock Immediately $ 61.14

19 10757301 Cover, Terminal Appelez-nous -
20 C8982102 Brkt,cond. Mtr Appelez-nous -
21 833697 Motor, Fan   (Replaces: 10884501) In-Stock Immediately $ 88.15

22 W10309990 Kit, Compressor (1380)   (Replaces: 12049703) In-Stock Immediately $ 632.81

23 10973901 Harness-mach Appelez-nous -
24 10845504 Cond. Fn Shrd Appelez-nous -
25 A3030359 Gasket Appelez-nous -
26 M0223803 Screw Appelez-nous -
27 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

28 10883404 Assy, Cond/pan E-ct Appelez-nous -
29 10277028 Box Hv-e Ct Appelez-nous -
30 M0108001 Clamp, Tube Appelez-nous -
31 C8913701 Support, Mc Appelez-nous -
32 W11245710 Screw, Sm (stnls)   (Replaces: M0210417) In-Stock Immediately $ 14.75

33 B5759645 Gasket, Sealing Appelez-nous -
34 WPW10339879 Tie   (Replaces: M0321202) Special Order $ 8.30

35 WP10097202 Ptc Relay   (Replaces: 10097202) Special Order $ 124.93

36 12992301 Screw, Tf   (Replaces: M0231604) Special Order $ 7.32

37 M0253916 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

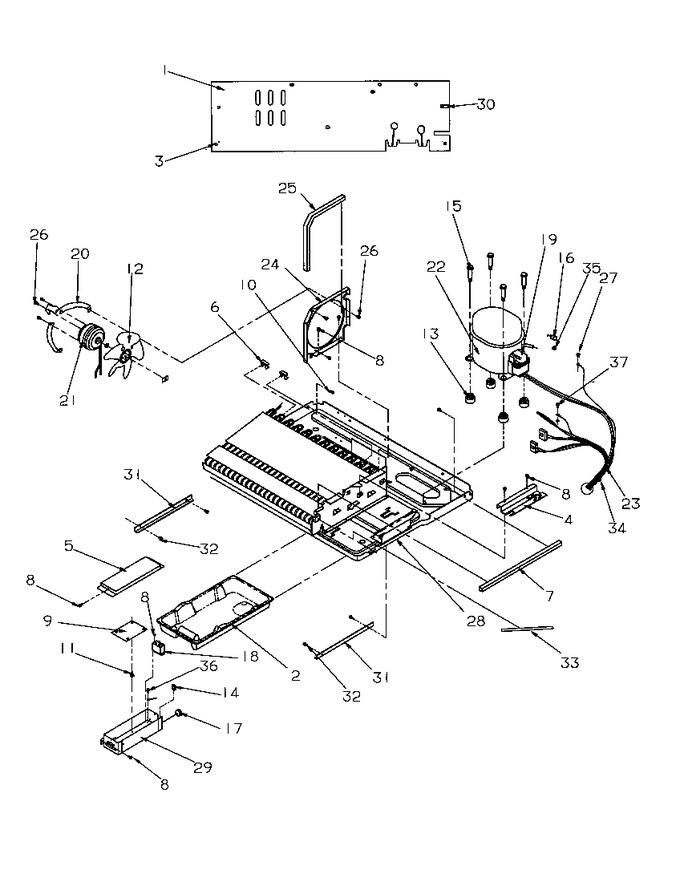

Diagram for SBD20S4L (BOM: P1190001W L)
