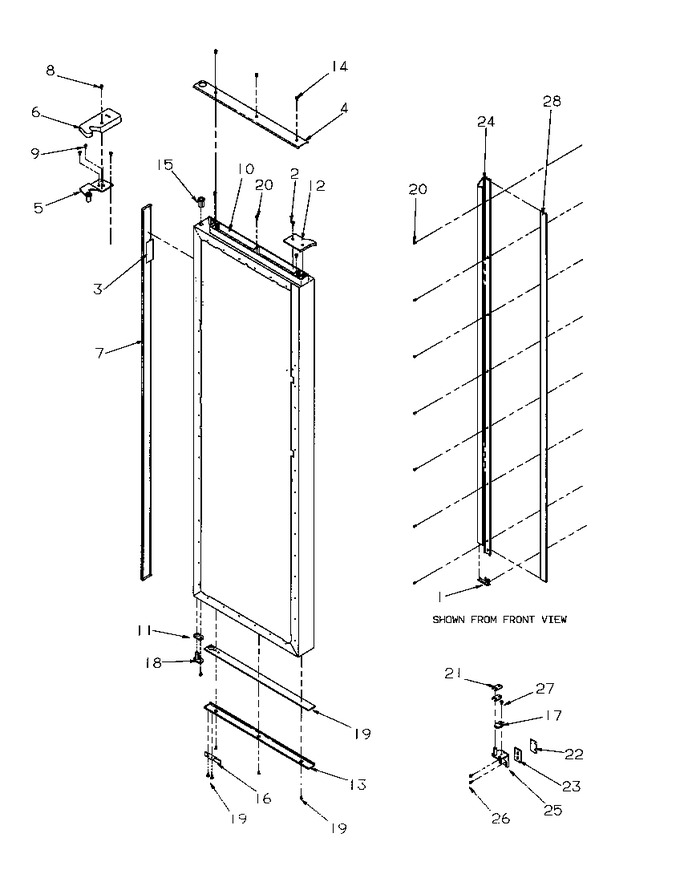

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 10871203 | Cap, Ref Handle Bot (almond) |
|
- | |||||
| 2 | M0213517 | Screw K |
|
- | |||||
| 3 | R0195042 | Double Backed Tape 6ft Roll |
|
- | |||||
| 4 | 10494405 | Trim-l Ref Dr Top |
|
- | |||||
| 5 | 10495804 | Hinge, Top R (e-ct) |
|
- | |||||
| 6 | 10504211 | Cover, Hinge |
|
- | |||||
| 7 | 10494521 | Trim-l Vertical |
|
- | |||||
| 8 | M0202325 | Screw |
|
- | |||||
| 9 | R9800670 | Kit, Screw (Replaces: M0226331) |
|
$ 10.58 | |||||
| 10 | 10979102 | Ext.-l Ref Dr |
|
- | |||||
| 11 | 10361802 | Shim, Dr Bushing |
|
- | |||||
| 12 | 10871103 | Cap, Ref Handle Top(almond) |
|
- | |||||
| 13 | 10602608 | Trim- L Ref Dr Bot |
|
- | |||||
| 14 | M0213815 | Screw |
|
- | |||||
| 15 | 10393802 | Bushing, Door (wht) |
|
- | |||||
| 16 | C8972406 | Stop, L Door |
|
- | |||||
| 17 | R0181181 | Kit,dr Closure (Replaces: D7748302) |
|
Immediately | $ 7.55 | ||||
| 18 | R0181181 | Kit,dr Closure (Replaces: D7751404) |
|
Immediately | $ 7.55 | ||||
| 19 | 10494603 | Support Ref Trim (btm) |
|
- | |||||
| 20 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 21 | B8387703 | Shim, Door Closure |
|
- | |||||
| 21 | WP67005716 | Shim, Dr Closure (blk) (Replaces: B8387704) |
|
$ 7.83 | |||||
| 22 | 10860201 | Kit, Bot.hinge Shim |
|
- | |||||
| 23 | 10399501 | Kit,btm Hinge Shim |
|
- | |||||
| 23 | 10399502 | Kit,btm Hinge Shim |
|
- | |||||
| 24 | 10875730 | Handle-l Ref Dr Org |
|
- | |||||
| 25 | 10496105 | Kit,hinge Rh Btm(b) |
|
- | |||||
| 26 | WP67006715 | Screw (Replaces: M0233847) |
|
$ 7.55 | |||||
| 27 | W11227370 | Screw, Lock Brake Mounting (Replaces: M0220418) |
|
Immediately | $ 14.91 | ||||
| 28 | 10945934 | Insert-l Handle Org |
|
- |
