Diagram # Part Number Description Series Availability Ships Price Add to Cart
10 10881201L Ass`y, Fz Dr Fm (alm) Appelez-nous -
20 10860801 Liner, Frz Dr I/w Appelez-nous -
30 B0523563 Insulation Ft. K Appelez-nous -
30 R0181181 Closure-e Door   (Replaces: 12113203) In-Stock Immediately $ 7.55

40 B0523562 Insul. By The Ft. Appelez-nous -
50 10871104 Cap, Frz Handle Top(almond) Appelez-nous -
60 M0213517 Screw K Appelez-nous -
70 WP67004977 Bushing, Top   (Replaces: C8964401) Special Order $ 8.20

90 WPB5705307 Tube, Plastic , 68``   (Replaces: B5705321) Special Order $ 13.05

100 C8972406 Stop, L Door Appelez-nous -
110 C8992901 Clip Appelez-nous -
120 C8982801 Retainer, Door Liner Appelez-nous -
130 10361802 Shim, Dr Bushing Appelez-nous -
130 10063102 Clip, Door Dike Appelez-nous -
170 10952102 Harness-fz Door Appelez-nous -
200 Y00000000 See Note L Cavity Assembly -- (see Image 1, Page 10 And 11 For Assembly Breakdown) Appelez-nous -
220 10870301 Insul.-i & W Cavity Appelez-nous -
240 D7791003 Gasket Cavity Appelez-nous -
270 10058401 Assy, Elect Brkt Appelez-nous -
280 10359702 Gasket (w Frz Dr) Appelez-nous -
360 D7828601 Retainer, Door Liner Appelez-nous -
400 10602507 Trim- L Fz Dr Bot Appelez-nous -
420 10063207 Dike, I & W Appelez-nous -
430 10063208 Dike, I & W Appelez-nous -
500 M0216517 Screw Appelez-nous -
510 M0219730 Screw Special Order $ 7.65

520 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

670 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

710 WP98165 Screw, Sm   (Replaces: M0211018) Special Order $ 8.57

730 10941501 Insul, Batt Appelez-nous -
730 M0213815 Screw Appelez-nous -
760 10494205 Trim-l Fz Dr Top Appelez-nous -
800 10494604 Support, Fz Trim Appelez-nous -
820 10986102 Facade-l Disp Appelez-nous -
830 M0219640 Screw Appelez-nous -
880 12043807 Cap-almond Switch Special Order $ 464.24

940 W10857122 Light Bulb   (Replaces: M0360001) Special Order $ 14.52

1000 12016901 Insul, Batt (ref. Door) Appelez-nous -
1010 12016902 Insul, Batt (ref. Door) Appelez-nous -
1060 10494521 Trim-l Vertical Appelez-nous -
1220 M0311601 Plug, Button Appelez-nous -
2250 10979202 Ext, Fz Dr Almond Appelez-nous -
2270 10871204 Cap, Frz Handle Bot(almond) Appelez-nous -
2290 12106216 Handle, Frz Dr (almond) Appelez-nous -
2340 10945938 Insert-l Handle Appelez-nous -
2800 B0523596 Insul. By The Ft. Appelez-nous -
3500 10984811 Insert-l Facade Appelez-nous -
5000 10504101 Chute, Ice Appelez-nous -
5010 12044501 Gasket-ice Chute Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

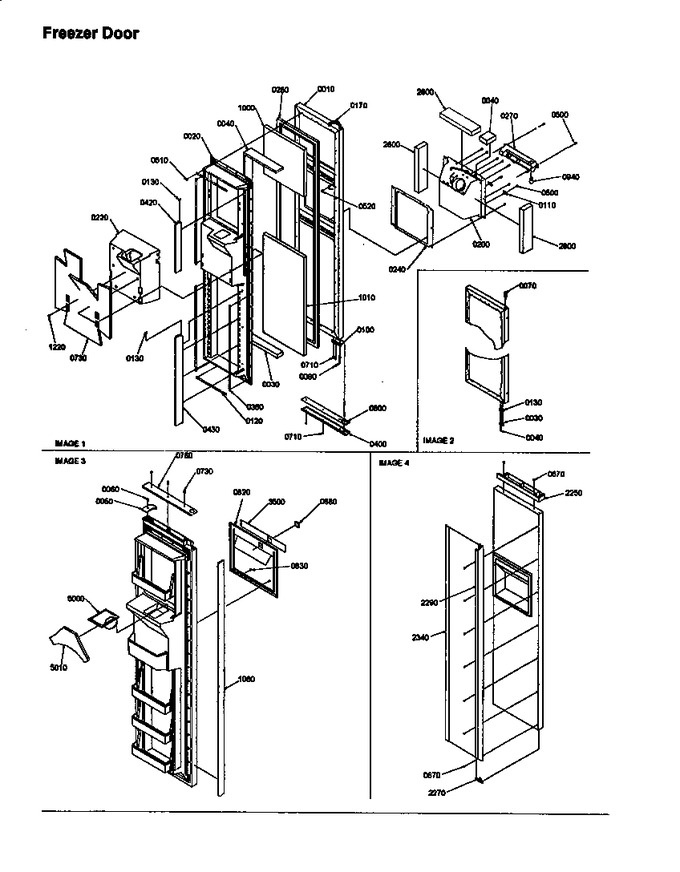

Diagram for SBD20S4L (BOM: P1190004W L)
