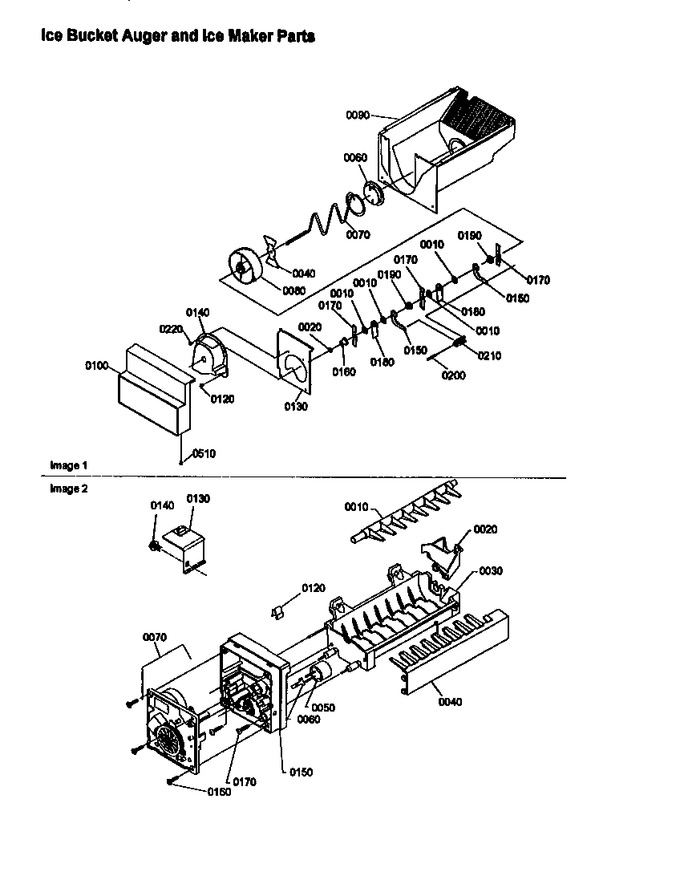

SBD20S4L (BOM: P1190004W L) | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
10	WP627843	Ejector (Replaces: R0183119)			$ 87.78
10	10275101	Washer, Waved	Appelez-nous	-
20	WPM0223101	Nut, Locking (Replaces: M0223101)			$ 8.06
20	WP628356	Cup, Water Fill/bearing (Replaces: R0156839)			$ 53.75
30	D7824706Q	Assy, Mold & Heater (Replaces: R0156669)		Immediately	$ 167.35
40	10113801	Bar, Crsh Ice Bucket			$ 4.96
40	WP2182124	Stripper, Ice (Replaces: R0183120)			$ 90.35
50	WP627985	N/a See Notes-thermostat (Replaces: R0161060)			$ 114.64
60	WPD7749401	Cap, Helix End (Replaces: D7749401)			$ 29.01
60	WP2315522	Retainer (Replaces: R0191094)			$ 11.60
70	10114401	Agitator, Ice			$ 107.74
70	W10190935	Module & Mtr Assy,120v/60hz (Replaces: R0167203)		Immediately	$ 110.07
80	10114702	Wheel, Crsh Ice	Appelez-nous	-
90	10111905	Bucket, Crushed Ice			$ 104.60
100	10870901	Front-ci Bucket	Appelez-nous	-
120	WP628379	Clip, Thermal Fuse (Replaces: 10319801)			$ 11.10
120	M0254706	Screw	Appelez-nous	-
130	10115001	Front, Ice Crusher			$ 25.55
130	B8391802	Bracket, I/m	Appelez-nous	-
140	67006425	Screw-sm No.8-1/2lg (Replaces: M0211017)		Immediately	$ 7.30
140	10114002	Cover, Blade	Appelez-nous	-
150	WP2195914	Support (Replaces: R0183121)			$ 109.80
150	10114601	Blade, Static	Appelez-nous	-
160	R0186041	Screw	Appelez-nous	-
160	10113901	Spacer, Cover	Appelez-nous	-
170	10114501	Blade, Rotating	Appelez-nous	-
170	R0186040	Screw	Appelez-nous	-
180	10275201	Damper, Ice	Appelez-nous	-
190	10114301	Washer Stepped	Appelez-nous	-
200	M1200108	Pin, Roll	Appelez-nous	-
210	10114101	Anchor, Blade	Appelez-nous	-
220	M0231704	Screw, Tf	Appelez-nous	-
510	W11233072	Screw (Replaces: M0214931)		Immediately	$ 14.72
NI	10634701	Label-diagnosis	Appelez-nous	-
NI	WP12740302	Crushed Ice Agitator Assy (Replaces: R0156803)			$ 529.58
