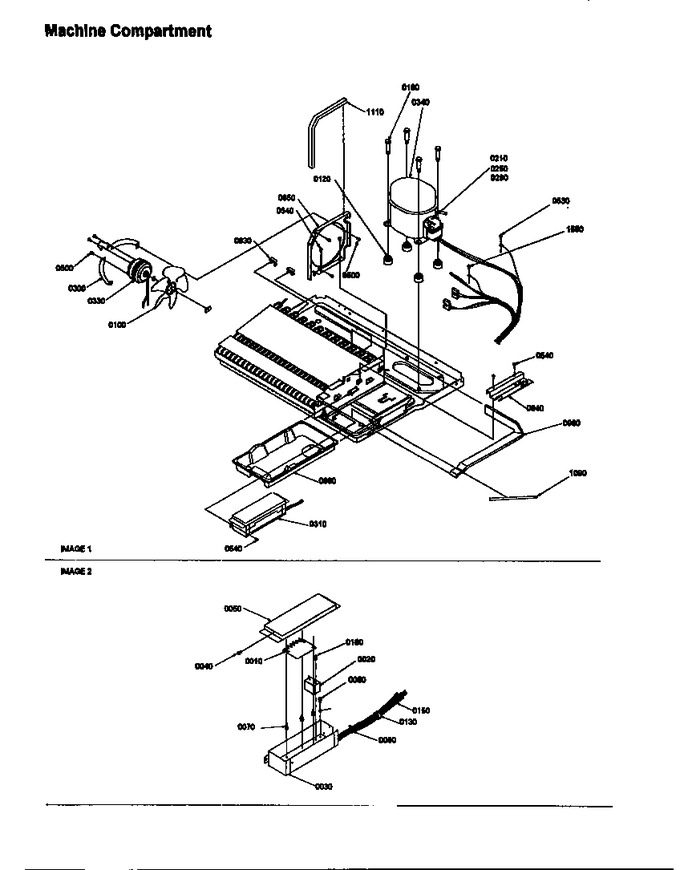

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 12050504 | Cont, Adap. Defrost |
|
- | |||||
| 20 | WP65889-4 | Capacitor (Replaces: C8931604) |
|
Immediately | $ 61.14 | ||||
| 30 | 10277030 | Hv Box-e Ct |
|
- | |||||
| 40 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 | ||||
| 50 | 10276906 | Top, Hv Box |
|
- | |||||
| 60 | 12992301 | Screw, Tf (Replaces: M0231604) |
|
$ 7.32 | |||||
| 70 | M0585504 | Support |
|
- | |||||
| 80 | M0585703 | Clamp, Wire |
|
- | |||||
| 100 | B5742604 | Blade, Fan |
|
- | |||||
| 120 | WPW10169124 | Grommet, Compressor (Replaces: 10835901) |
|
$ 7.55 | |||||
| 130 | A3293504 | Bushing, Snap |
|
- | |||||
| 150 | 10973901 | Harness-mach |
|
- | |||||
| 160 | M0221523 | Screw, Shldr |
|
- | |||||
| 160 | M0223803 | Screw |
|
- | |||||
| 210 | 10377015 | Overload |
|
- | |||||
| 250 | WP10097202 | Ptc Relay (Replaces: 10097202) |
|
$ 124.93 | |||||
| 280 | 10757301 | Cover, Terminal |
|
- | |||||
| 300 | C8982102 | Brkt,cond. Mtr |
|
- | |||||
| 310 | Y00000000 | See Note Hv Box Assembly -- (see Image 2 For Assembly Breakdown) |
|
- | |||||
| 330 | 833697 | Motor, Fan (Replaces: 10884501) |
|
Immediately | $ 88.15 | ||||
| 340 | W10309990 | Compressor-tc Tp1380y (Replaces: 12049723) |
|
Immediately | $ 632.81 | ||||
| 500 | M0223803 | Screw |
|
- | |||||
| 530 | M0253916 | Screw |
|
- | |||||
| 540 | WP90767 | Screw (Replaces: M0216716) |
|
Immediately | $ 8.25 | ||||
| 650 | 10845504 | Cond. Fn Shrd |
|
- | |||||
| 660 | 10645601 | Extrusion, Refr Light |
|
- | |||||
| 930 | 10674601 | Clip-cond |
|
- | |||||
| 940 | 10845302 | H.v. Box Shelf-e Ct |
|
- | |||||
| 980 | A3189367 | Gasket-foam |
|
- | |||||
| 1090 | B5759645 | Gasket, Sealing |
|
- | |||||
| 1110 | A3030359 | Gasket |
|
- | |||||
| 1550 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 |
