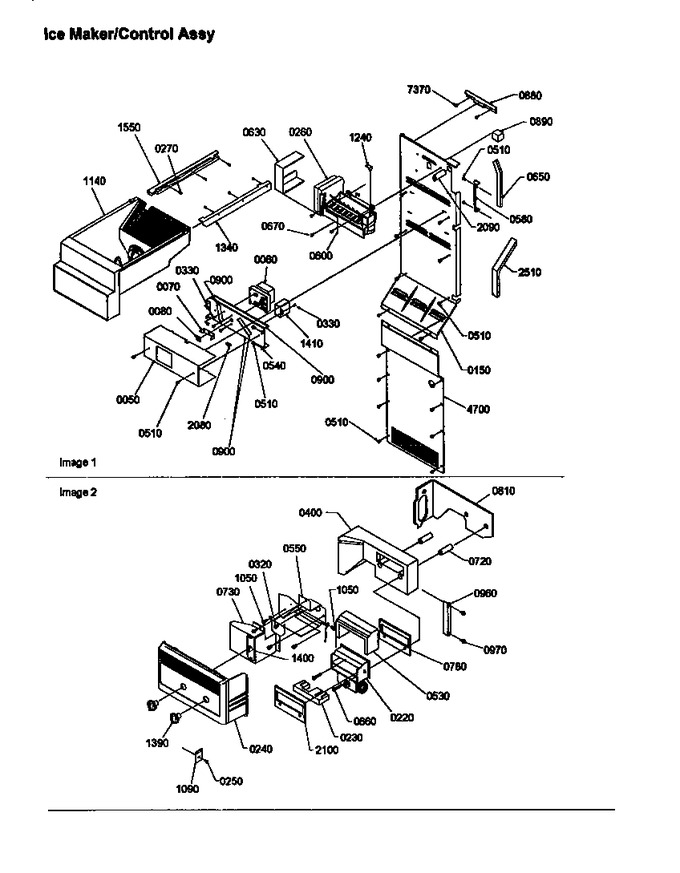

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 50 | D7788817 | Cover, Auger Mtr |
|
- | |||||
| 60 | 10114804 | Kit, Auger Motor |
|
- | |||||
| 70 | 10114901 | Driver (ice Maker) |
|
$ 1.61 | |||||
| 80 | WPM0223101 | Nut, Locking (Replaces: M0223101) |
|
$ 8.06 | |||||
| 150 | D7821154 | Inner Fz Bk-pnt |
|
- | |||||
| 220 | D7547411 | Control-damper |
|
- | |||||
| 230 | C8902601 | Insert, Control |
|
- | |||||
| 240 | 10862701 | Cover-control |
|
- | |||||
| 250 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 260 | D7824706Q | Ice Maker (Replaces: D7824703) |
|
Immediately | $ 167.35 | ||||
| 270 | M0213529 | Screw |
|
- | |||||
| 320 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 330 | WPW10139210 | Screw, Tc (Replaces: M0226528) |
|
$ 8.03 | |||||
| 400 | 10176602 | Air Duct, Waxed |
|
- | |||||
| 510 | 67006425 | Screw, Sm (Replaces: M0238616) |
|
Immediately | $ 7.30 | ||||
| 530 | D7788201 | Insulation |
|
- | |||||
| 540 | D7749205 | Support,auger Motor |
|
- | |||||
| 550 | D7822404 | Box, Bottom Control |
|
- | |||||
| 580 | D7838302 | Cover, Supply Air |
|
- | |||||
| 600 | D7877001 | Arm,ice Maker Shut Off |
|
- | |||||
| 630 | D7820401 | Cover Im |
|
- | |||||
| 650 | B8386602 | Gasket |
|
- | |||||
| 660 | M0216539 | Screw |
|
- | |||||
| 670 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 720 | A3044208 | Spacer Damper |
|
- | |||||
| 730 | D7868606 | Box, Control Top |
|
- | |||||
| 780 | B8345401 | Gasket, Damper |
|
- | |||||
| 810 | 10177901 | Gasket, Air Duct |
|
- | |||||
| 880 | C8976201 | Clamp |
|
- | |||||
| 900 | A3030305 | Gasket-per Ft |
|
- | |||||
| 960 | C8977301 | Clamp |
|
- | |||||
| 970 | WP489474 | Screw 1`` (Replaces: M0211021) |
|
Immediately | $ 8.55 | ||||
| 1050 | WP489399 | Screw (Replaces: M0232903) |
|
$ 7.30 | |||||
| 1090 | C8992302 | Brkt-control Cover |
|
- | |||||
| 1140 | Y00000000 | See Note Crsh Ice Bkt Assembly -- (see Image 1, Pages 28 And 29 Assembly Breakdown) |
|
- | |||||
| 1240 | B5720301 | Clip |
|
- | |||||
| 1340 | 37849904 | Glide-r Fz |
|
- | |||||
| 1390 | D7795826 | Knob, Control (wht) |
|
- | |||||
| 1400 | R0161092 | Control-temp (Replaces: C3615024) |
|
$ 226.99 | |||||
| 1410 | W10613606 | Capacitor (Replaces: C8931605) |
|
Immediately | $ 86.59 | ||||
| 1550 | 67005375 | Glide-l Fz (Replaces: D7849903) |
|
$ 312.82 | |||||
| 2080 | M0585203 | Tie, Wire |
|
- | |||||
| 2090 | A3127412 | Ext. Fill Tube |
|
- | |||||
| 2100 | 10383201 | Gasket, Damper |
|
- | |||||
| 2510 | A3189335 | Gasket Foam |
|
- | |||||
| 4700 | 10655902 | Evap Cover- E Ct |
|
- | |||||
| 7370 | 67006425 | Screw-sm No.8-1/2lg (Replaces: M0211017) |
|
Immediately | $ 7.30 |
