Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10860201 Kit, Bot.hinge Shim Appelez-nous -
2 WP8281196 Screw, Mach   (Replaces: M0202336) In-Stock Immediately $ 7.55

3 10875729 Handle-w Fz Dr Appelez-nous -
5 R9800670 Screw, Mounting   (Replaces: M0223230) Special Order $ 10.58

6 10393802 Bushing, Door (wht) Appelez-nous -
7 W11227370 Screw, Lock Brake Mounting   (Replaces: M0220418) In-Stock Immediately $ 14.91

8 C8972405 Stop-w Door Appelez-nous -
9 R0181181 Kit,dr Closure   (Replaces: D7751402) In-Stock Immediately $ 7.55

14 WP67006715 Screw   (Replaces: M0233847) Special Order $ 7.55

16 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 8.43

17 67006425 Screw, Sm   (Replaces: M0211019) In-Stock Immediately $ 7.30

18 10495806 Hinge, Top L (e-ct) Appelez-nous -
19 R9800670 Kit, Screw   (Replaces: M0226331) Special Order $ 10.58

20 B8389001 Shim, Top Hinge Appelez-nous -
21 B8387701 Shim, Door Closure Appelez-nous -
22 10504206 Cover, Hinge Appelez-nous -
23 R0181181 Kit,dr Closure   (Replaces: D7748301) In-Stock Immediately $ 7.55

24 10496107 Kit,hinge Lh Btm(w) Appelez-nous -
25 10399501 Kit,btm Hinge Shim Appelez-nous -
25 10399502 Kit,btm Hinge Shim Appelez-nous -
26 10871202 Cap-w Fz Hndl Bot. Appelez-nous -
27 10871102 Cap-w Fz Hndl Top Appelez-nous -
28 10979201 Ext, Fz Dr (wht) Appelez-nous -
30 10945933 Insert-w Handle Appelez-nous -
31 10494604 Support, Fz Trim Appelez-nous -
32 10494510 Trim, Vert Appelez-nous -
33 10494204 Trim-w Fz Dr Top Appelez-nous -
34 10602506 Trim, Frz Dr Bot W Appelez-nous -
NOTE: R134a Refrigerant System: This Refrigerant System Incorporates R134a Refrigerant And Approved Svc Techniques And Equipment Should Be Applied If Sealed System Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

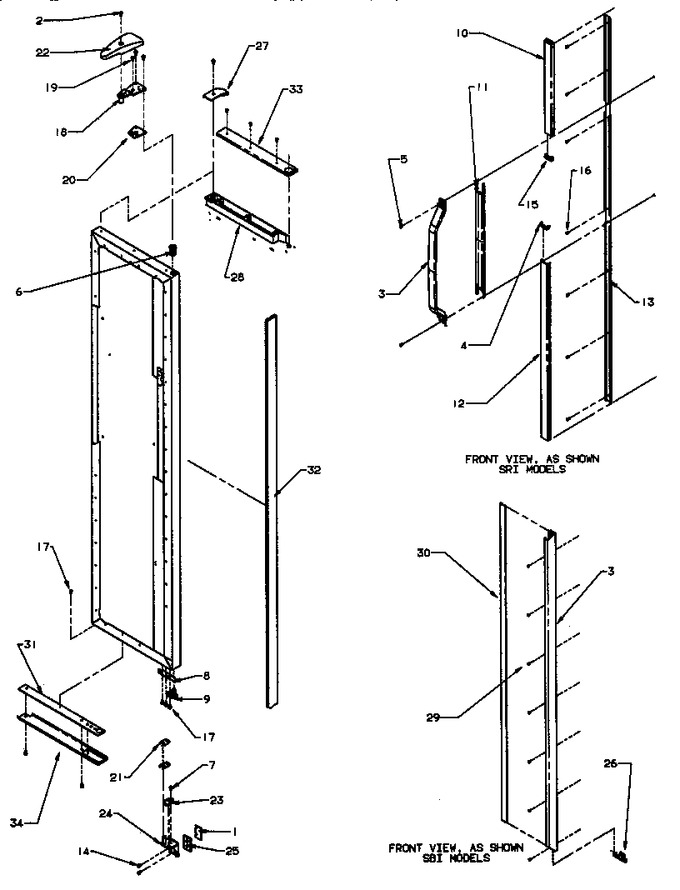

Diagram for SBI20S2W (BOM: P1190701W W)
