Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10809505 Shelf-full Gli Out Appelez-nous -
2 10809907 Rail, L Blank Side Appelez-nous -
3 10809908 Rail, R Blank Side Appelez-nous -
4 Y10370065 Glass-shelf Appelez-nous -
5 10783301 Pan, Crisper Appelez-nous -
6 M0581001 Grommet, Screw Appelez-nous -
7 D7789808 Ladder, Cantilever Appelez-nous -
8 D7789809 Ladder, Cantilever Appelez-nous -
9 WP90767 Screw, Sm   (Replaces: M0211016) In-Stock Immediately $ 8.25

10 M0580007 Grommet, Screw Appelez-nous -
11 C8992301 Bracket Appelez-nous -
12 10954007 Insert, Shelf Appelez-nous -
13 10783901 Sleeve,deli Appelez-nous -
14 10872601 Manifold, Deli Appelez-nous -
15 10872701 Gasket, Deli Appelez-nous -
16 10986402 Band-deli Appelez-nous -
17 10873801 Extrn.-rear Deli Appelez-nous -
18 10783702 Frame, Deli Appelez-nous -
20 10784101 Pan,deli Appelez-nous -
21 10481001 Roller, Pan Special Order $ 10.99

22 67006692 Screw, Shoulder   (Replaces: M0238105) Special Order $ 10.79

23 M0051701 Pad-bumper Appelez-nous -
24 10852501 Slide, Crisper/deli Appelez-nous -
25 10809711 Shelf, Split Guide Appelez-nous -
26 10875101 Stop, Shelf Appelez-nous -
27 10954001 Insert, Shelf Appelez-nous -
27 10954002 Insert, Shelf Appelez-nous -
28 10809501 Shelf Full Glide Appelez-nous -
29 10968801 Seal-crisp Front Appelez-nous -
30 10882701 Band, Crisper Appelez-nous -
31 10782901 Frame,crisper Appelez-nous -
32 10783101 Shelf- Top Crisper Appelez-nous -
33 10954010 Insert, Shelf Appelez-nous -
34 10783201 Pan,crisper Appelez-nous -
35 10882702 Band-crisper Appelez-nous -
36 10783001 Frame-crisper Appelez-nous -
37 10872201 Trim, Crisper Frt Appelez-nous -
NI 10882801 Assy, Crisper Frame Appelez-nous -
NI 10877201 Ass`y, Deli Shelf Appelez-nous -
NI 10883301 Ass`y, Split Glide Shelf Appelez-nous -
NI 10883302 Ass`y, Full Glide Shelf Appelez-nous -
NI 10882802 Ass`y, Crisp Frame Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

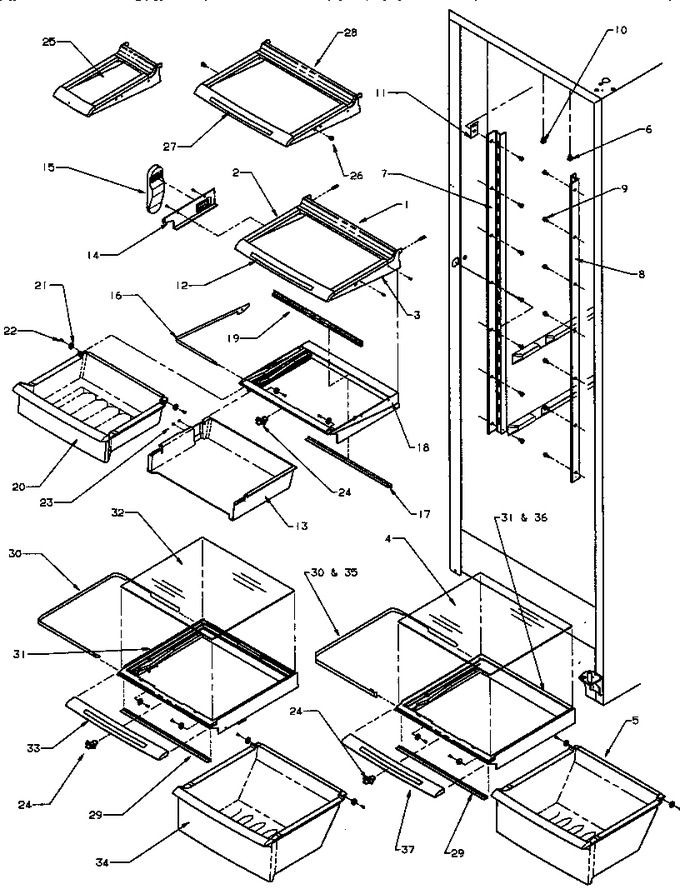

Diagram for SBI20S2W (BOM: P1190701W W)
